owners manual Land Rover Defender

all ratings: 0 average rating: 5

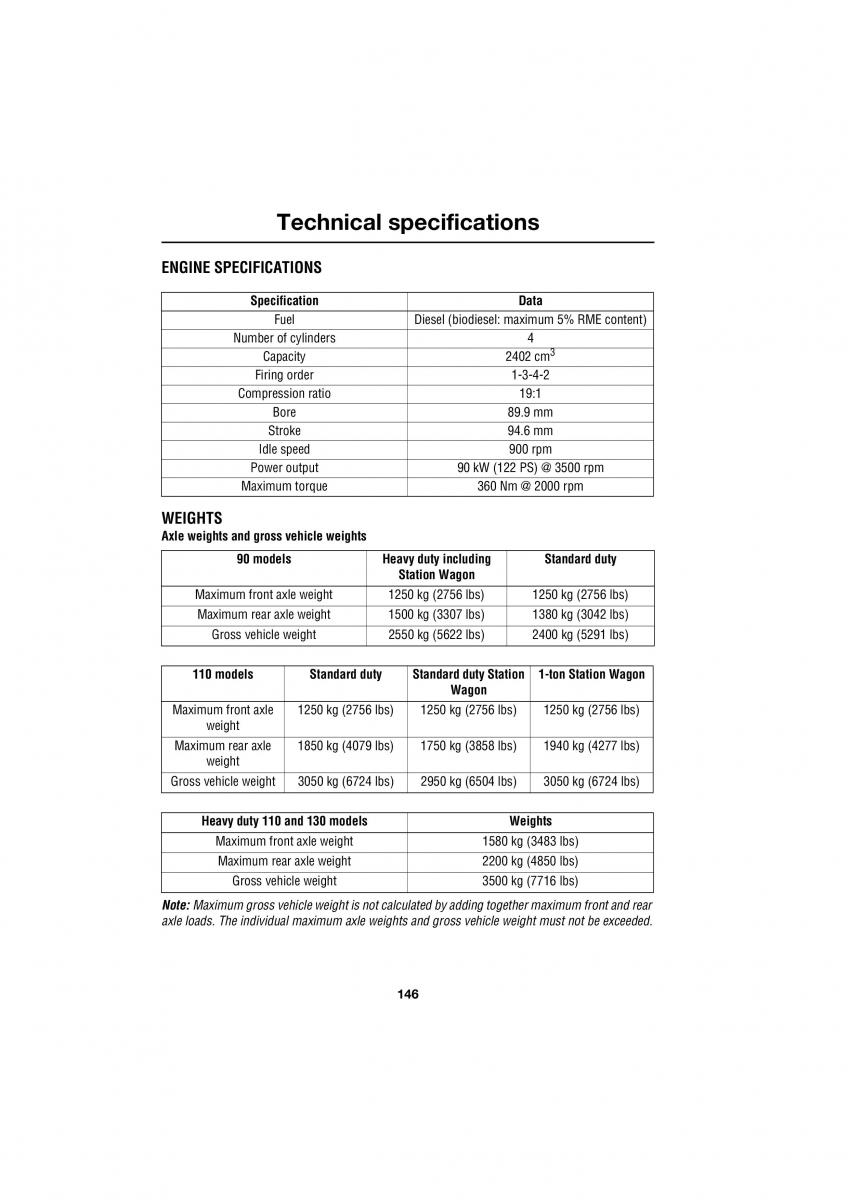

L Technical specifications Technical specifications ENGINE SPECIFICATIONS Specification Data Fuel Diesel (biodiesel: maximum 5% RME content) Number of cylinders 4 Capacity 2402 cm3 Firing order 1-3-4-2 Compression ratio 19:1 Bore 89.9 mm Stroke 94.6 mm Idle speed 900 rpm Power output 90 kW (122 PS) @ 3500 rpm Maximum torque 360 Nm @ 2000 rpm WEIGHTS Axle weights and gross vehicle weights 90 models Heavy duty including Standard duty Station Wagon Maximum front axle weight 1250 kg (2756 lbs) 1250 kg (2756 lbs) Maximum rear axle weight 1500 kg (3307 lbs) 1380 kg (3042 lbs) Gross vehicle weight 2550 kg (5622 lbs) 2400 kg (5291 lbs) 110 models Standard duty Standard duty Station 1-ton Station Wagon Wagon Maximum front axle 1250 kg (2756 lbs) 1250 kg (2756 lbs) 1250 kg (2756 lbs) weight Maximum rear axle 1850 kg (4079 lbs) 1750 kg (3858 lbs) 1940 kg (4277 lbs) weight Gross vehicle weight 3050 kg (6724 lbs) 2950 kg (6504 lbs) 3050 kg (6724 lbs) Heavy duty 110 and 130 models Weights Maximum front axle weight 1580 kg (3483 lbs) Maximum rear axle weight 2200 kg (4850 lbs) Gross vehicle weight 3500 kg (7716 lbs) Note: Maximum gross vehicle weight is not calculated by adding toge ther maximum front and rear axle loads. The individual maximum axle weights and gross vehicle weight must not be exceeded. 146
