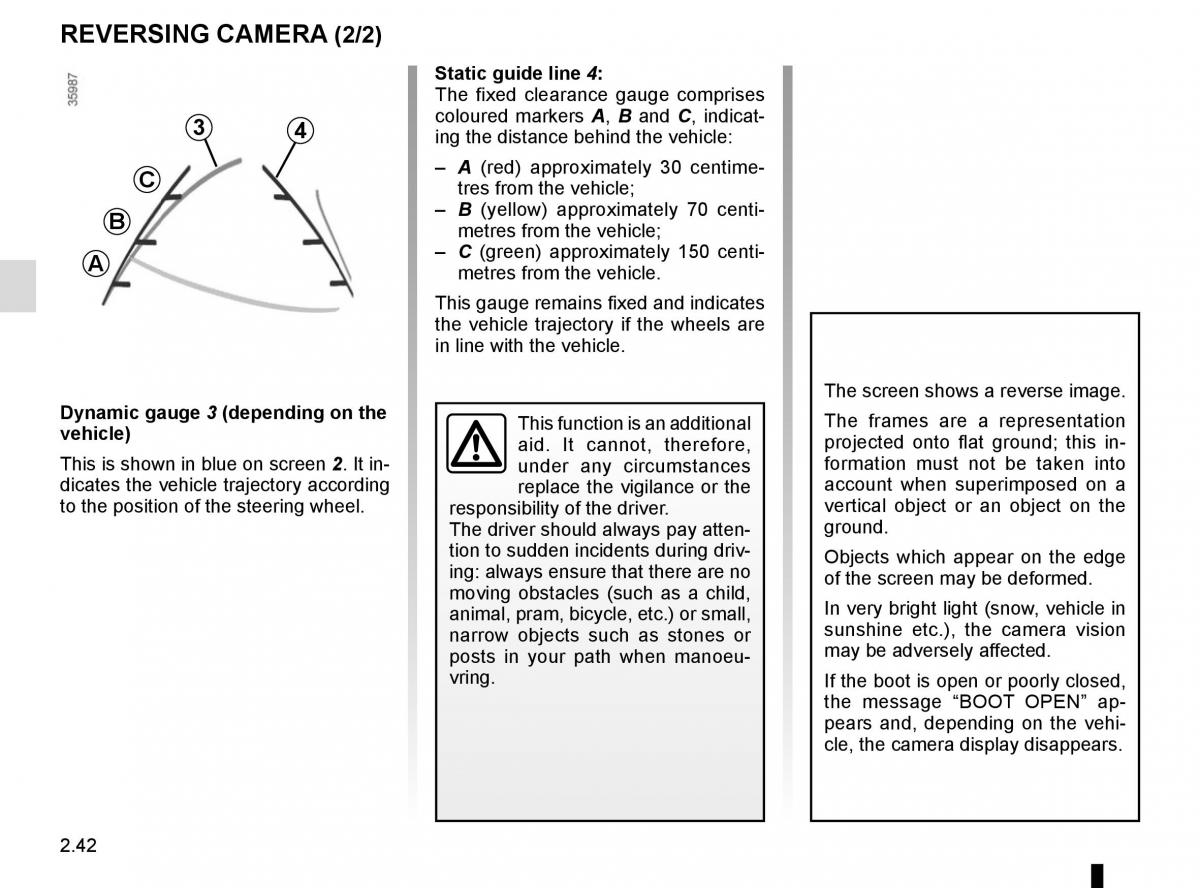

REVERSING CAMERA (2/2) Static guide line 4: The fixed clearance gauge comprises 3 4 coloured markers A, B and C, indicat- ing the distance behind the vehicle: C – A (red) approximately 30 centime- tres from the vehicle; B – B (yellow) approximately 70 centi- metres from the vehicle; A – C (green) approximately 150 centi- metres from the vehicle. This gauge remains fixed and indicates the vehicle trajectory if the wheels are in line with the vehicle. The screen shows a reverse image. Dynamic gauge 3 (depending on the This function is an additional The frames are a representation vehicle) projected onto flat ground; this in- aid. It cannot, therefore, This is shown in blue on screen 2. It in- formation must not be taken into under any circumstances dicates the vehicle trajectory according replace the vigilance or the account when superimposed on a to the position of the steering wheel.responsibility of the driver.vertical object or an object on the The driver should always pay atten-ground. tion to sudden incidents during driv-Objects which appear on the edge ing: always ensure that there are no of the screen may be deformed. moving obstacles (such as a child, animal, pram, bicycle, etc.) or small, In very bright light (snow, vehicle in sunshine etc.), the camera vision narrow objects such as stones or may be adversely affected. posts in your path when manoeu- vring. If the boot is open or poorly closed, the message “BOOT OPEN” ap- pears and, depending on the vehi- cle, the camera display disappears. 2.42
