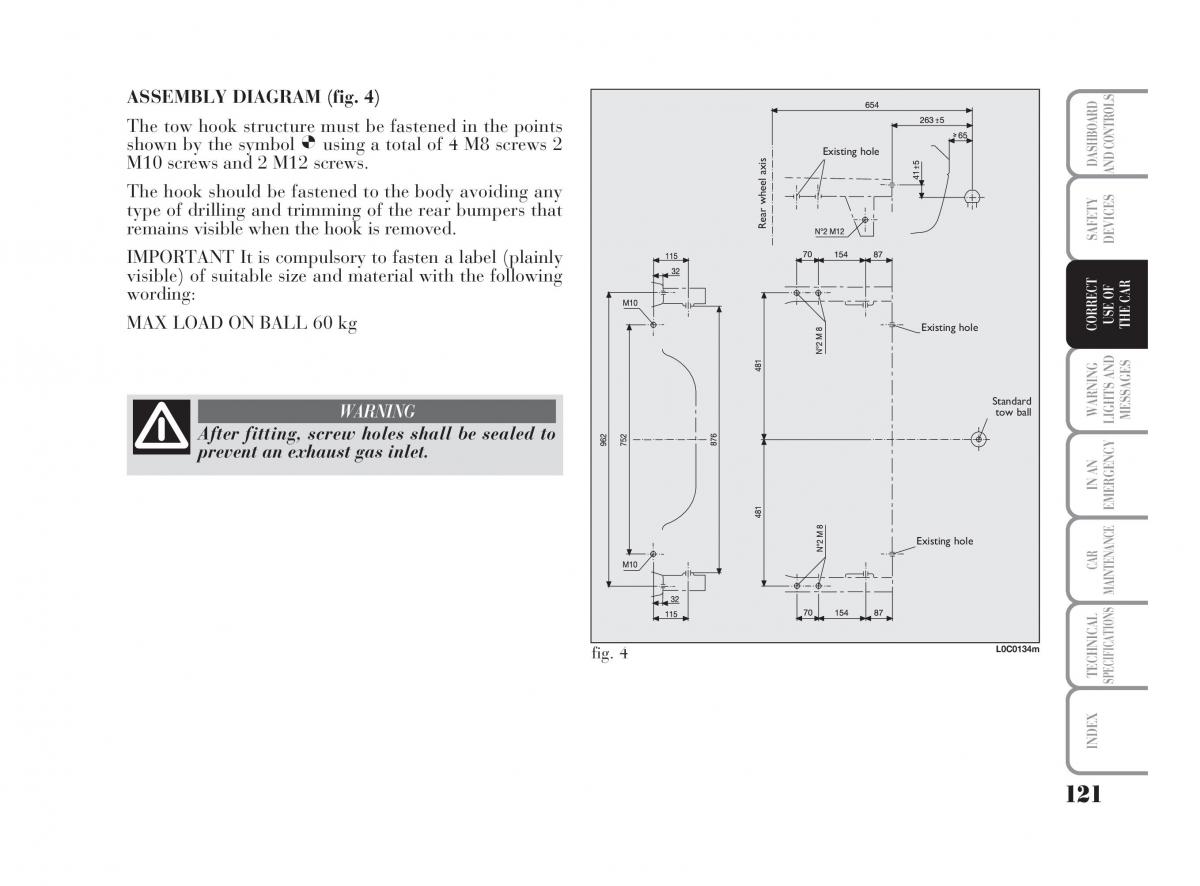

ASSEMBLY DIAGRAM(fig. 4)
The tow hook structure must be fastened in the points
shown by the symbol Ø using a total of 4 M8 screws 2 Existing hole
M10 screws and 2 M12 screws. DASHBOARDAND CONTROLS
The hook should be fastened to the body avoiding any
type of drilling and trimming of the rear bumpers that
remains visible when the hook is removed. Rear wheel axis SAFETY
DEVICES
IMPORTANT It is compulsory to fasten a label (plainly
visible) of suitable size and material with the following
wording:
MAX LOAD ON BALL 60 kg Existing hole CORRECTUSE OF THE CAR
Standard
WARNING tow ball WARNINGLIGHTS ANDMESSAGES
After fitting, screw holes shall be sealed to
prevent an exhaust gas inlet.
