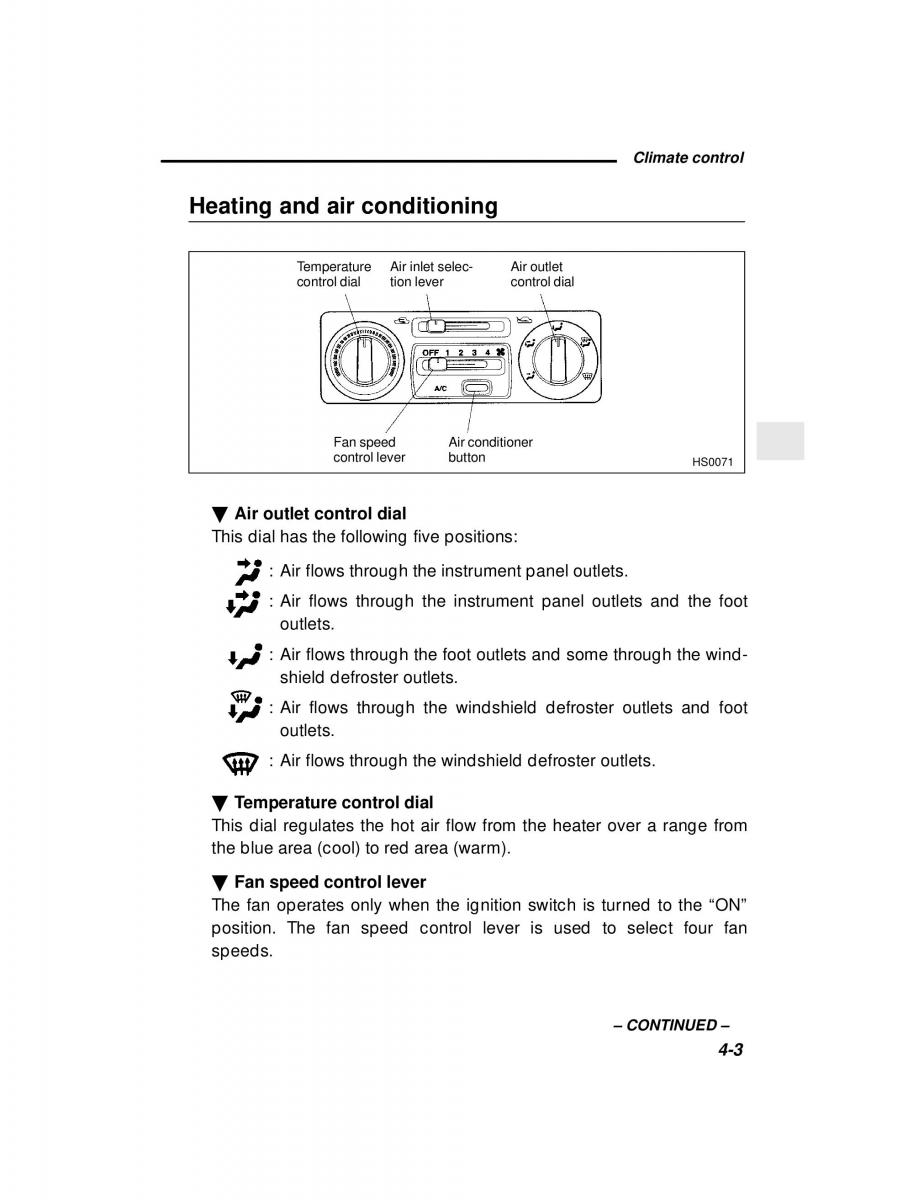

Climate control
Heating and air conditioning
TemperatureAir inlet selec-Air outlet
control dialtion lever control dial
Fan speed Air conditioner
control leverbutton HS0071
Air outlet control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets and the foot
outlets.
: Air flows through the foot outlets and some through the wind-
shield defroster outlets.
: Air flows through the windshield defroster outlets and foot
outlets.
: Air flows through the windshield defroster outlets.
Temperature control dial
This dial regulates the hot air flow from the heater over a range from
the blue area (cool) to red area (warm).
Fan speed control lever
The fan operates only when the ignition switch is turned to the “ON”
position. The fan speed control lever is used to select four fan
speeds.
– CONTINUED –
4-3
