owners manual Suzuki Grand Vitara

all ratings: 1 average rating: 5

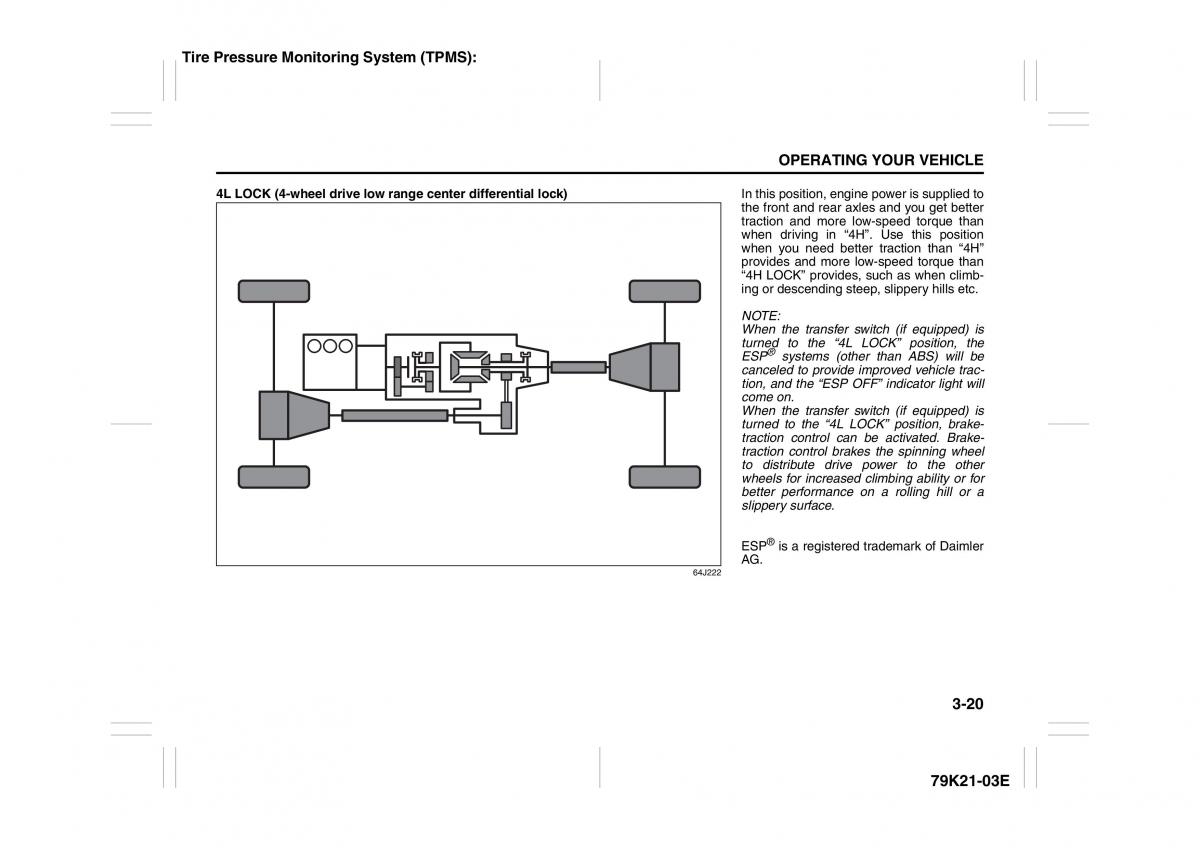

Tire Pressure Monitoring System (TPMS): OPERATING YOUR VEHICLE 4L LOCK (4-wheel drive low range center differential lock) In this position, engine power is supplied to the front and rear axles and you get better traction and more low-speed torque than when driving in “4H”. Use this position when you need better traction than “4H” provides and more low-speed torque than “4H LOCK” provides, such as when climb- ing or descending steep, slippery hills etc. NOTE: When the transfer switch (if equipped) is turned to the “4L LOCK” position, the ® ESP systems (other than ABS) will be canceled to provide improved vehicle trac- tion, and the “ESP OFF” indicator light will come on. When the transfer switch (if equipped) is turned to the “4L LOCK” position, brake- traction control can be activated. Brake- traction control brakes the spinning wheel to distribute drive power to the other wheels for increased climbing ability or for better performance on a rolling hill or a slippery surface. ESP® is a registered trademark of Daimler AG. 64J222 3-20 79K21-03E
