NU737_5_G5-FRA.qxd 10/08/05 10:12 Page 5.04

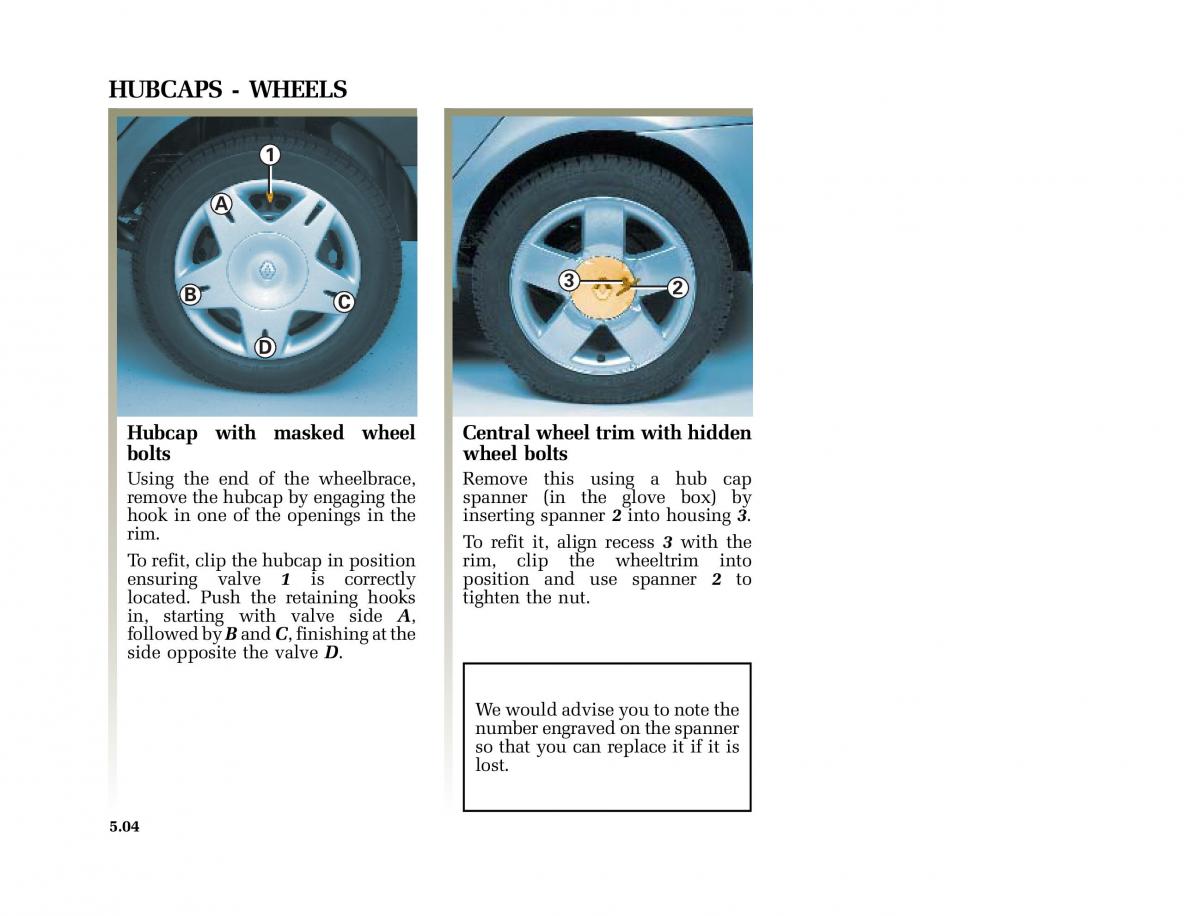

HUBCAPS - WHEELS
1
A
B 3 2
C
D
Hubcap with masked wheel Central wheel trim with hidden
bolts wheel bolts
Using the end of the wheelbrace,Remove this using a hub cap
remove the hubcap by engaging thespanner (in the glove box) by
hook in one of the openings in theinserting spanner 2 into housing 3.
rim. To refit it, align recess 3 with the
To refit, clip the hubcap in positionrim,clipthewheeltriminto
ensuringvalve 1 is correctly position and use spanner2 to
located. Push the retaining hookstighten the nut.
in, startingwith valve side A,
followedby BandC,finishingatthe
side opposite the valve D.
Wewouldadviseyoutonotethe
numberengravedonthespanner
so that you can replace it if it is
lost.
5.04
CLIO-TRICORPS NU737-5C:\Documentum\Checkout\NU737_5_T5-ENG.win 30/9/2005 7:26-page4
