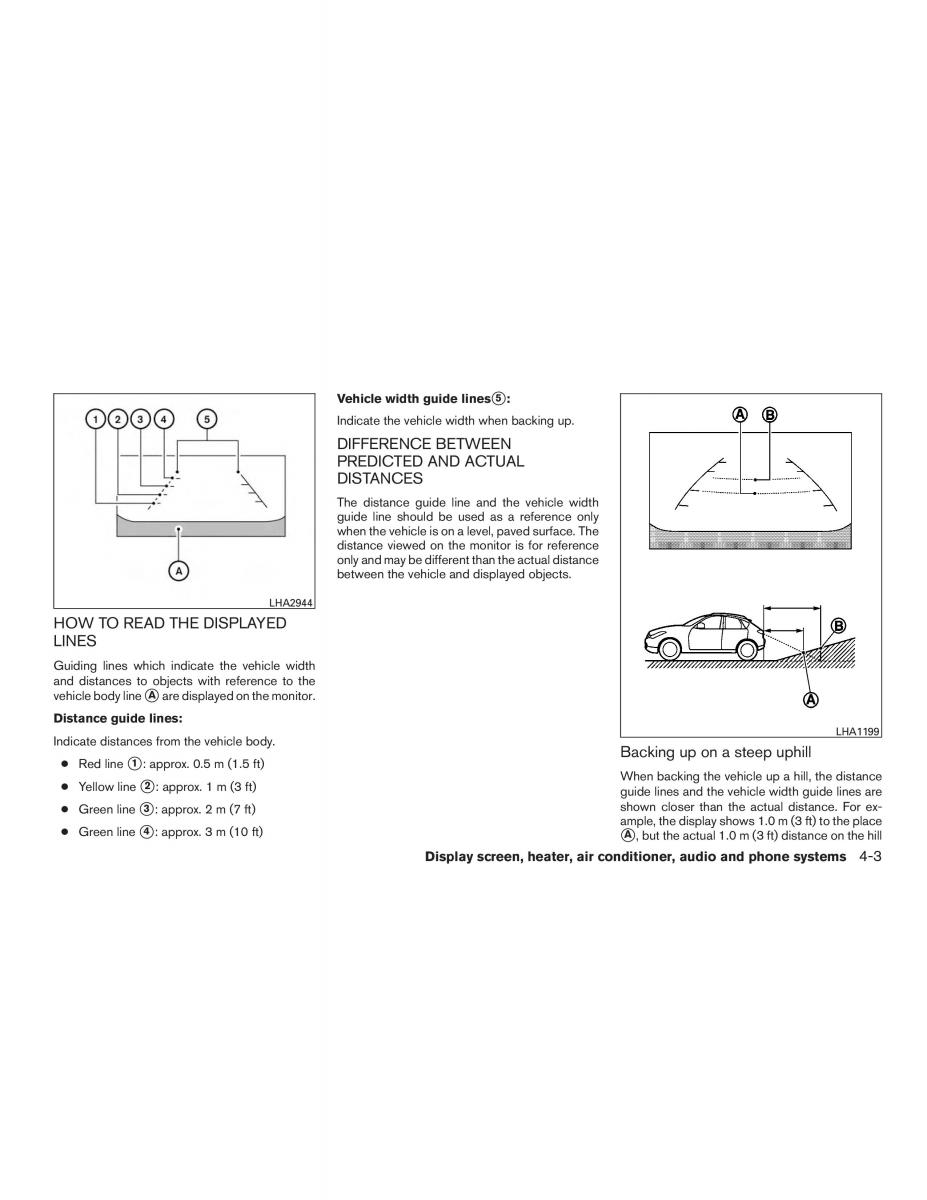

Vehicle width guide lines 5 :
Indicate the vehicle width when backing up.
DIFFERENCEBETWEEN
PREDICTEDANDACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
whenthevehicleisonalevel,pavedsurface.The
distance viewed on the monitor is for reference
onlyandmaybedifferentthantheactualdistance
between the vehicle and displayed objects.
LHA2944
HOWTOREADTHEDISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehiclebodyline A aredisplayedonthemonitor.
Distance guide lines:
Indicate distances from the vehicle body. LHA1199
Backing up on a steep uphill
● Redline 1 : approx. 0.5 m (1.5 ft)
Whenbacking the vehicle up a hill, the distance
● Yellow line 2 : approx.1m(3ft)
guide lines and the vehicle width guide lines are
● Greenline 3 : approx.2m(7ft) shown closer than the actual distance. For ex-
ample,thedisplayshows1.0m(3ft)totheplace
● Greenline 4 : approx. 3 m (10 ft) A
,buttheactual1.0m(3ft)distanceonthehill
Display screen, heater, air conditioner, audio and phone systems 4-3
