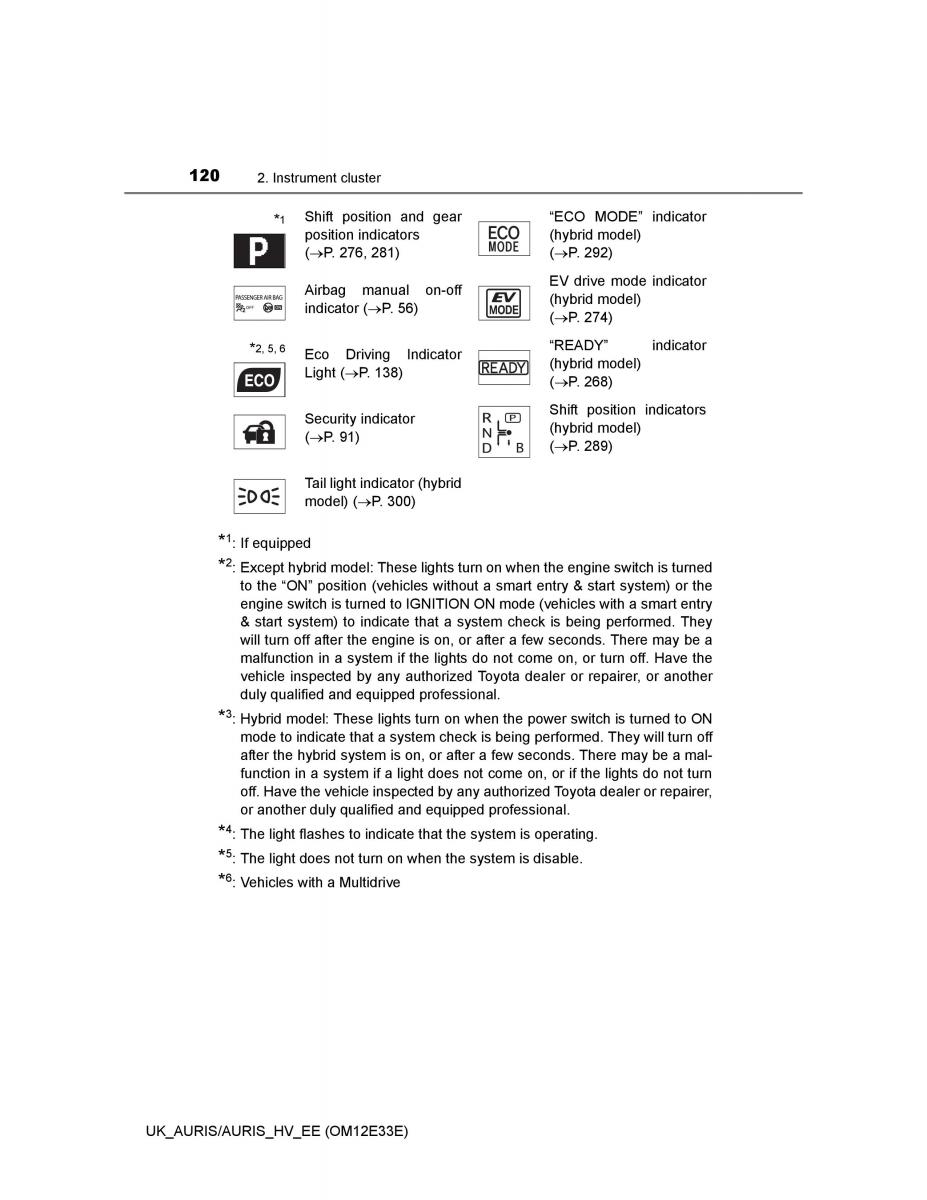

120 2. Instrument cluster
1 Shift position and gear“ECO MODE” indicator
*
position indicators (hybrid model)
(P. 276, 281) (P. 292)
EV drive mode indicator
Airbag manual on-off
indicator (P. 56) (hybrid model)
(P. 274)
2, 5, 6 “READY” indicator
* Eco Driving Indicator
Light (P. 138) (hybrid model)
(P. 268)
Security indicator Shift position indicators
(P. 91) (hybrid model)
(P. 289)
Tail light indicator (hybrid
model) (P. 300)
1
* : If equipped
2
* : Except hybrid model: These lights turn on when the engine switch is turned
to the “ON” position (vehicles without a smart entry & start system) or the
engine switch is turned to IGNITION ON mode (vehicles with a smart entry
& start system) to indicate that a system check is being performed. They
will turn off after the engine is on, or after a few seconds. There may be a
malfunction in a system if the lights do not come on, or turn off. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
3
* : Hybrid model: These lights turn on when the power switch is turned to ON
mode to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
4
* : The light flashes to indicate that the system is operating.
5
* : The light does not turn on when the system is disable.
6
* : Vehicles with a Multidrive
UK_AURIS/AURIS_HV_EE (OM12E33E)
