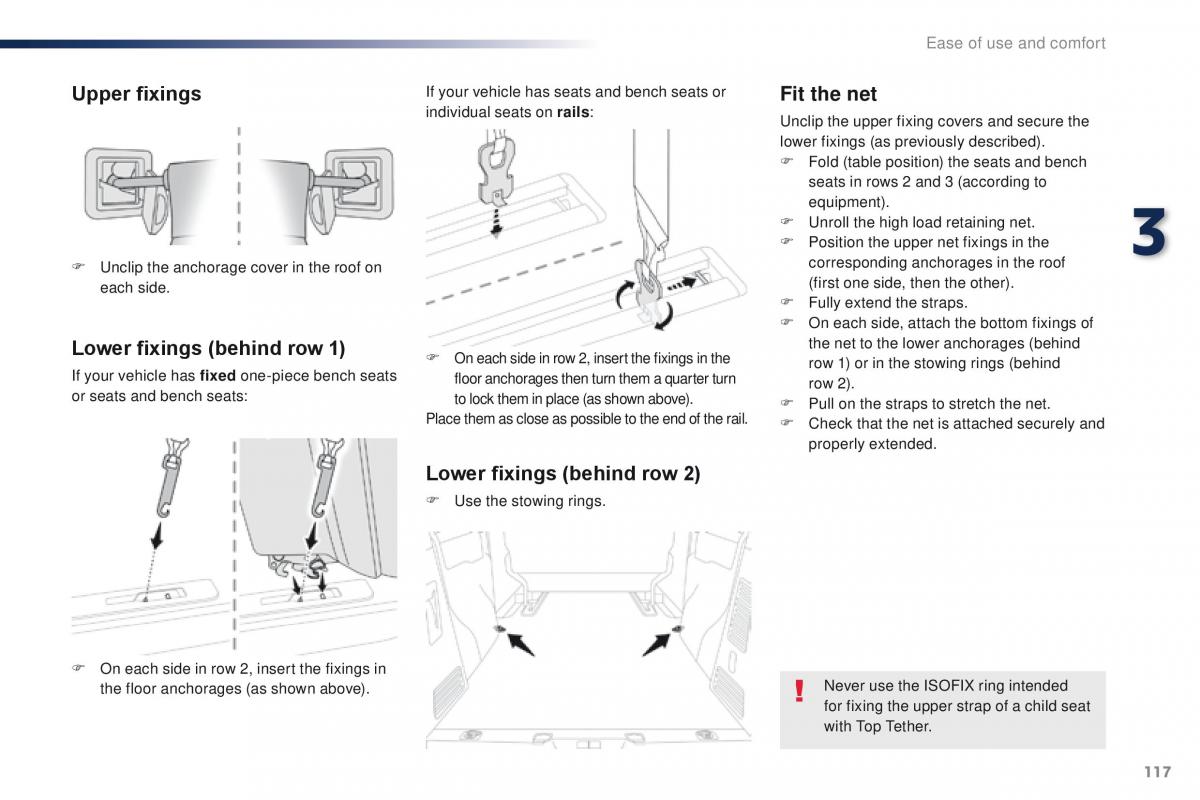

Ease of use and comfort
Upper ixings If your vehicle has seats and bench seats or Fit the net
individual seats on rails:unclip the upper fixing covers and secure the
lower fixings (as previously described).
F Fold (table position) the seats and bench
seats in rows 2 and 3 (according to
equipment).
F unroll the high load retaining net.
F Position the upper net fixings in the 3
F unclip the anchorage cover in the roof on corresponding anchorages in the roof
each side. (first one side, then the other).
F Fully extend the straps.
F on each side, attach the bottom fixings of
Lower ixings (behind row 1)F on each side in row 2, insert the fixings in the the net to the lower anchorages (behind
If your vehicle has fixed one-piece bench seats floor anchorages then turn them a quarter turn row 1) or in the stowing rings (behind
or seats and bench seats: to lock them in place (as shown above).row 2).
Place them as close as possible to the end of the rail.F Pull on the straps to stretch the net.
F Check that the net is attached securely and
properly extended.
Lower ixings (behind row 2)
F use the stowing rings.
F on each side in row 2, insert the fixings in
the floor anchorages (as shown above). Never use the ISoFIX ring intended
for fixing the upper strap of a child seat
with Top Tether.
117
Traveller-VP_en_Chap03_ergonomie-et-confort_ed01-2016
