text version of content this owner's manual page from owners manual to the vehicle Ford B-Max, year of production 2012:

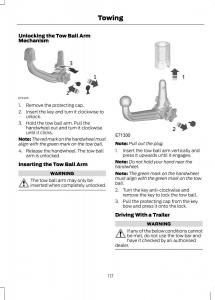

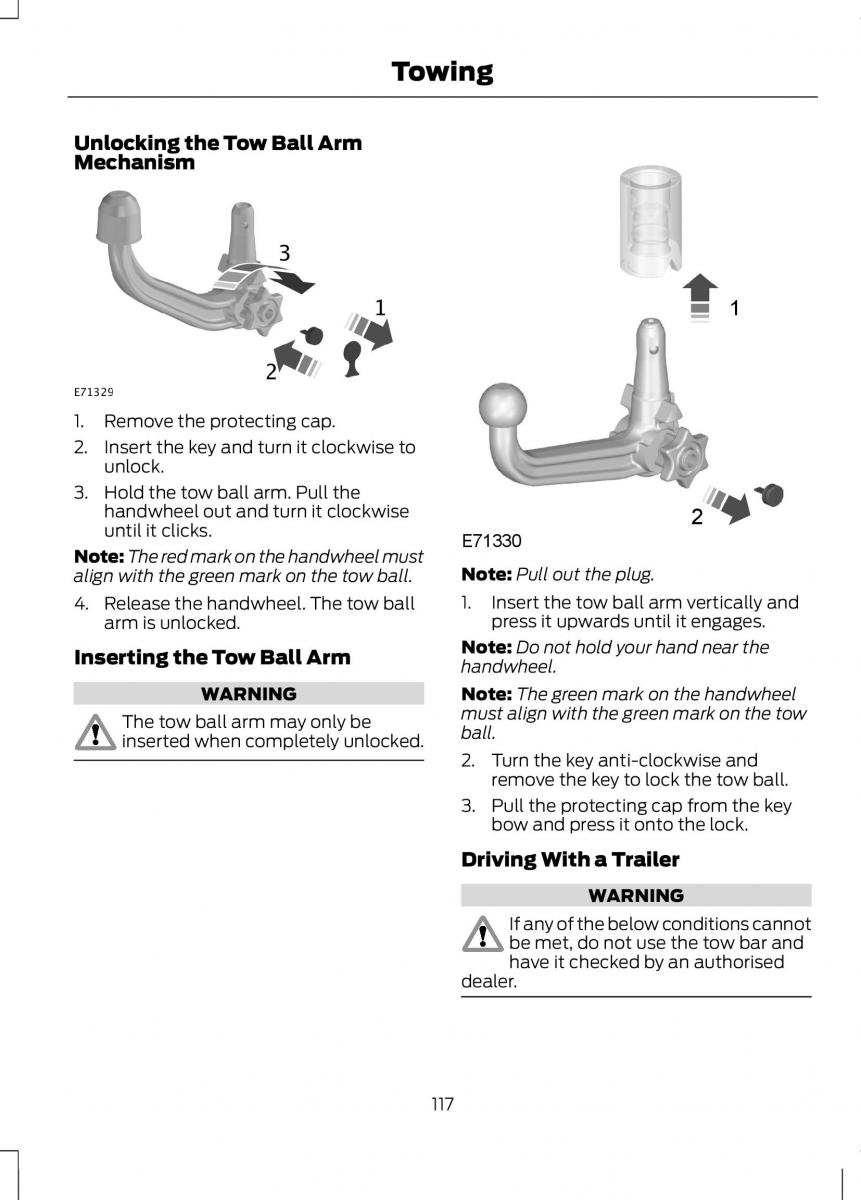

Towing Unlocking the Tow Ball Arm Mechanism 1.Remove the protecting cap. 2.Insert the key and turn it clockwise to unlock. 3.Hold the tow ball arm. Pull the handwheel out and turn it clockwise until it clicks. Note:The red mark on the handwheel mus tNote:Pull out the plug. align with the green mark on the tow ball. 4. Release the handwheel. The tow ball1.Insert the tow ball arm vertically and arm is unlocked. press it upwards until it engages. Inserting the Tow Ball Arm Note:Do not hold your hand near the handwheel. WARNING Note:The green mark on the handwheel The tow ball arm may only bemust align with the green mark on the tow inserted when completely unlocked.ball. 2.Turn the key anti-clockwise and remove the key to lock the tow ball. 3.Pull the protecting cap from the key bow and press it onto the lock. Driving With a Trailer WARNING If any of the below conditions c annot be met, do not use the tow bar and have it checked by an authorised dealer. 117
