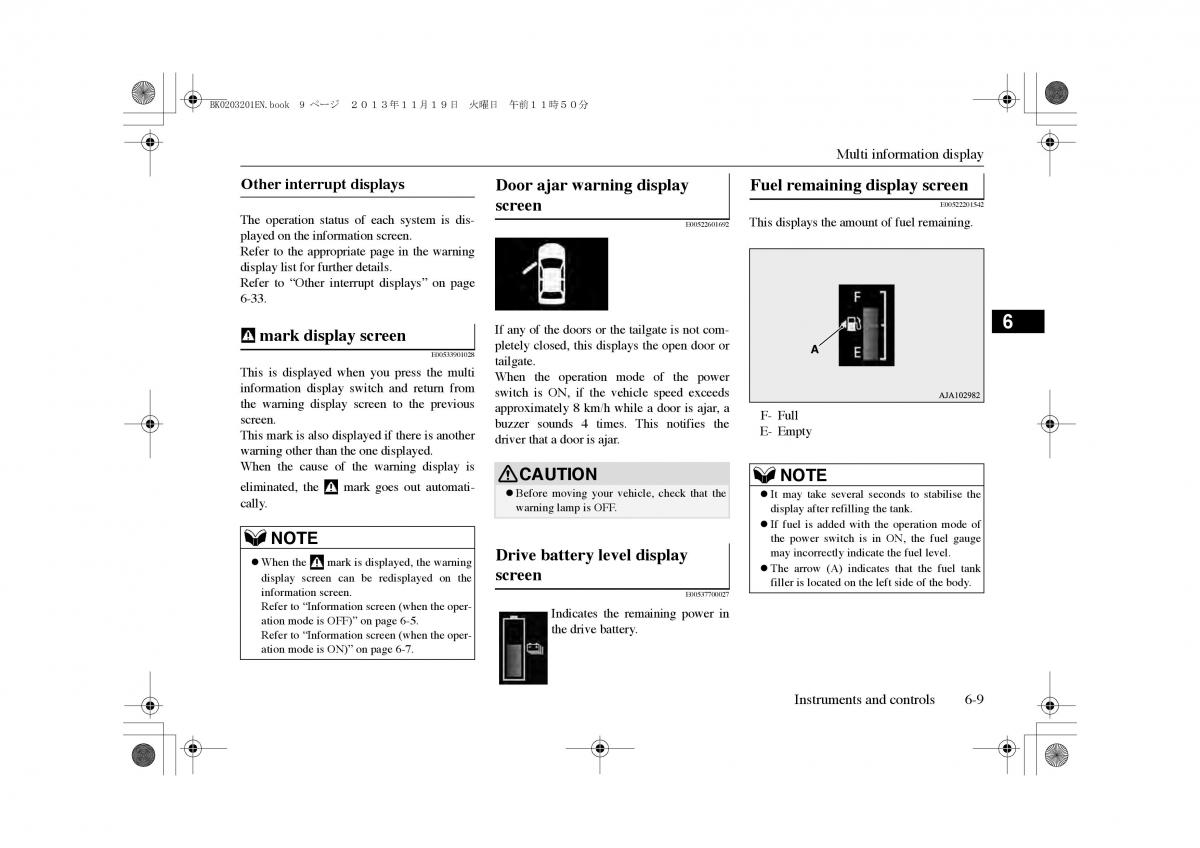

text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander PHEV, year of production 2012:

B０0203201E３.book 9 ページ㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 Multi information display Other interrupt displays Door ajar warning display Fuel remaining display screen screen E00522201542 The operation status of each system is dis- E00522601692This displays the amount of fuel remaining. played on the information screen. Refer to the appropriate page in the warning display list for further details. Refer to “Other interrupt displays” on page 6-33. mark display screen If any of the doors or the tailgate is not com- 6 E00533901028 pletely closed, this displays the open door or This is displayed when you press the multi tailgate. information display switch and return from When the operation mode of the power the warning display screen to the previous switch is ON, if the vehicle speed exceeds screen. approximately 8 km/h while a door is ajar, a F- Full This mark is also displayed if there is another buzzer sounds 4 times. This notifies the E- Empty warning other than the one displayed. driver that a door is ajar. When the cause of the warning display is CAUTION NOTE eliminated, the mark goes out automati- zBefore moving your vehicle, check that the zIt may take several seconds to stabilise the cally. warning lamp is OFF. display after refilling the tank. zIf fuel is added with the operation mode of NOTE the power switch is in ON, the fuel gauge zWhen the mark is displayed, the warning Drive battery level display may incorrectly indicate the fuel level. display screen can be redisplayed on thescreen zThe arrow (A) indicates that the fuel tank information screen. filler is located on the left side of the body. Refer to “Information screen (when the oper- E00537700027 ation mode is OFF)” on page 6-5. Indicates the remaining power in Refer to “Information screen (when the oper- the drive battery. ation mode is ON)” on page 6-7. Instruments and controls 6-9
