text version of content this owner's manual page from owners manual to the vehicle Mercedes CLA, year of production 2013:

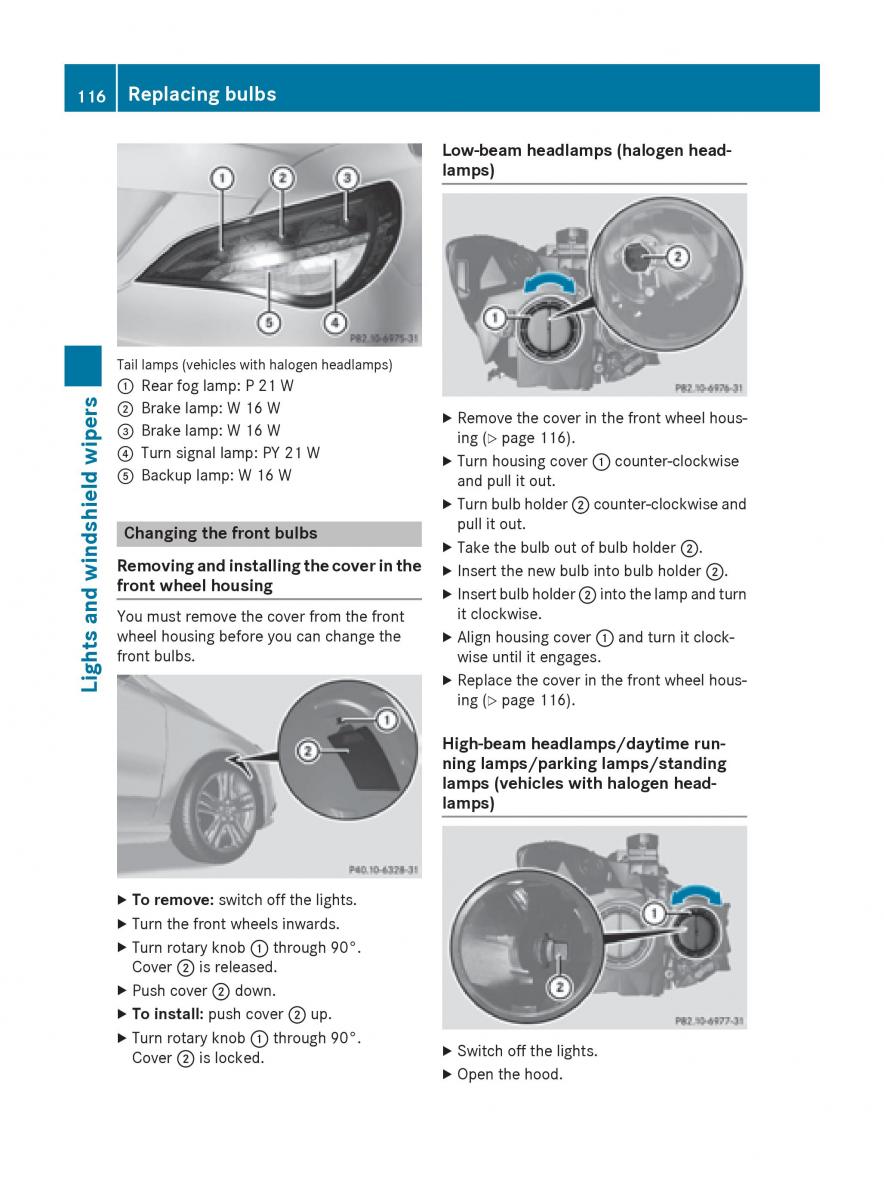

116 Replacing bulbs Low-beamheadlamps(halogenhead- lamps) Tail lamps (vehicles with halogen headlamps) :Rearfoglamp:P21W ;Brakelamp:W16W XRemovethecoverinthefrontwheelhous- =Brakelamp:W16W ing (Y page 116). ?Turnsignallamp:PY21W wipers XTurnhousingcover:counter-clockwise ABackuplamp:W16W and pull it out. XTurnbulbholder;counter-clockwiseand pull it out. Changingthefrontbulbs XTakethebulboutofbulbholder;. Removingandinstallingthecoverinthe XInsert the new bulb into bulb holder ;. windshield front wheel housing XInsertbulbholder;intothelampandturn it clockwise. andYoumustremovethecoverfromthefront wheel housing before you can change theXAlign housing cover : and turn it clock- front bulbs. wise until it engages. XReplacethecoverinthefront wheel hous- Lights ing (Y page 116). High-beamheadlamps/daytimerun- ning lamps/parking lamps/standing lamps(vehicles with halogen head- lamps) XToremove:switchoffthelights. XTurnthefront wheels inwards. XTurnrotary knob : through 90°. Cover ;isreleased. XPushcover;down. XToinstall: push cover ; up. XTurnrotary knob : through 90°. XSwitchoff the lights. Cover ;islocked. XOpenthehood.
