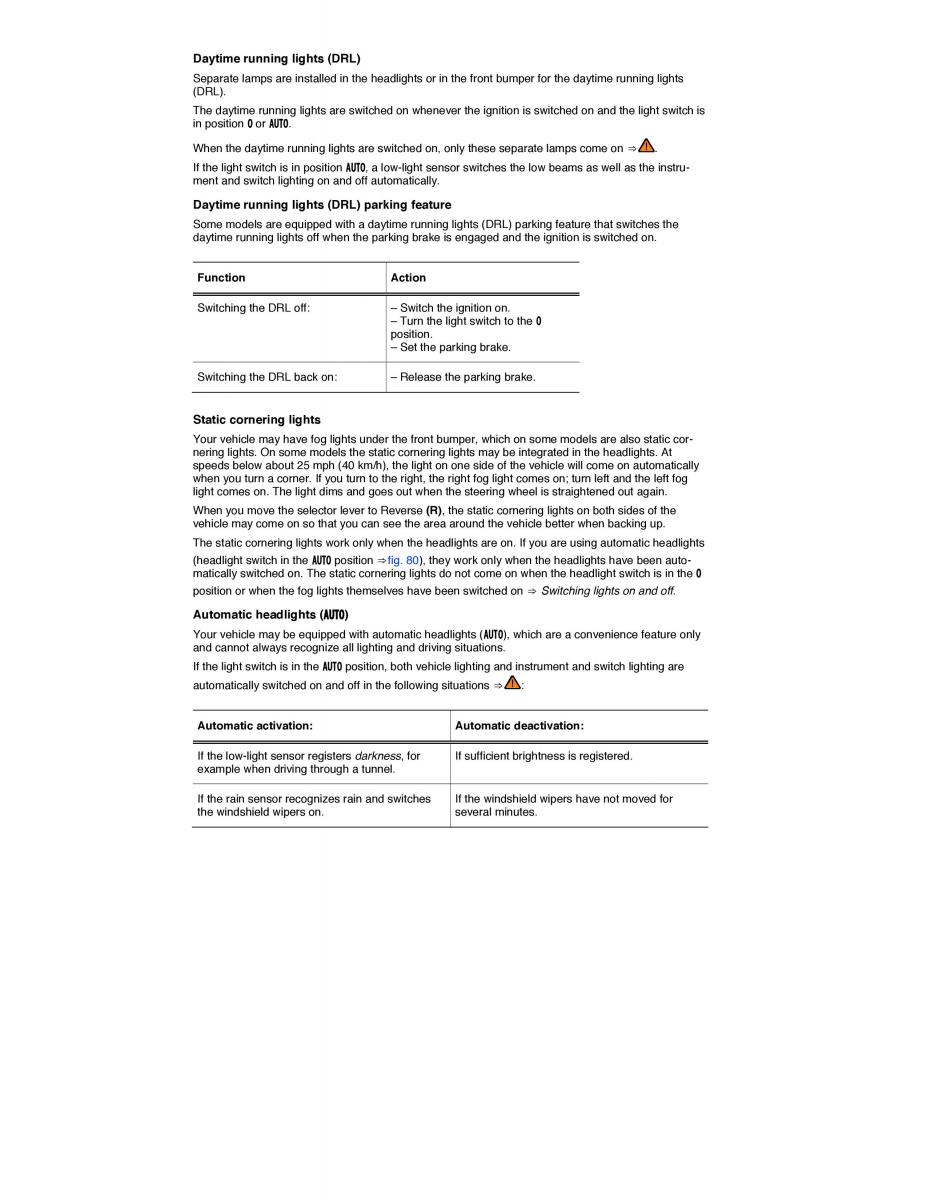

from owners manual to the vehicle VW Jetta, year of production 2010:
Daytime running lights (DRL)
Separate lamps are installed in the headlights or in the front bumper for the daytime running lights
(DRL).
The daytime running lights are switched on whenever the ignition is switched on and the light switch is
in position / or !54/.
When the daytime running lights are switched on, only these separate lamps come on ⇒ .
If the light switch is in position !54/, a low-light sensor switches the low beams as well as the instru-
ment and switch lighting on and off automatically.
Daytime running lights (DRL) parking feature
Some models are equipped with a daytime running lights (DRL) parking feature that switches the
daytime running lights off when the parking brake is engaged and the ignition is switched on.
Function Action
Switching the DRL off: – Switch the ignition on.
– Turn the light switch to the /
position.
– Set the parking brake.
Switching the DRL back on: – Release the parking brake.
Static cornering lights
Your vehicle may have fog lights under the front bumper, which on some models are also static cor-
nering lights. On some models the static cornering lights may be integrated in the headlights. At
speeds below about 25 mph (40 km/h), the light on one side of the vehicle will come on automatically
when you turn a corner. If you turn to the right, the right fog light comes on; turn left and the left fog
light comes on. The light dims and goes out when the steering wheel is straightened out again.
When you move the selector lever to Reverse (R), the static cornering lights on both sides of the
vehicle may come on so that you can see the area around the vehicle better when backing up.
The static cornering lights work only when the headlights are on. If you are using automatic headlights
(headlight switch in the !54/ position ⇒ fig. 80), they work only when the headlights have been auto-
matically switched on. The static cornering lights do not come on when the headlight switch is in the /
position or when the fog lights themselves have been switched on ⇒ Switching lights on and off.
Automatic headlights (!54/)
Your vehicle may be equipped with automatic headlights (!54/), which are a convenience feature only
and cannot always recognize all lighting and driving situations.
If the light switch is in the !54/ position, both vehicle lighting and instrument and switch lighting are
automatically switched on and off in the following situations ⇒ :
Automatic activation: Automatic deactivation:
If the low-light sensor registers darkness, for If sufficient brightness is registered.
example when driving through a tunnel.
If the rain sensor recognizes rain and switches If the windshield wipers have not moved for
the windshield wipers on. several minutes.
