from owners manual to the vehicle Toyota Yaris, year of production 1999 - 2005:

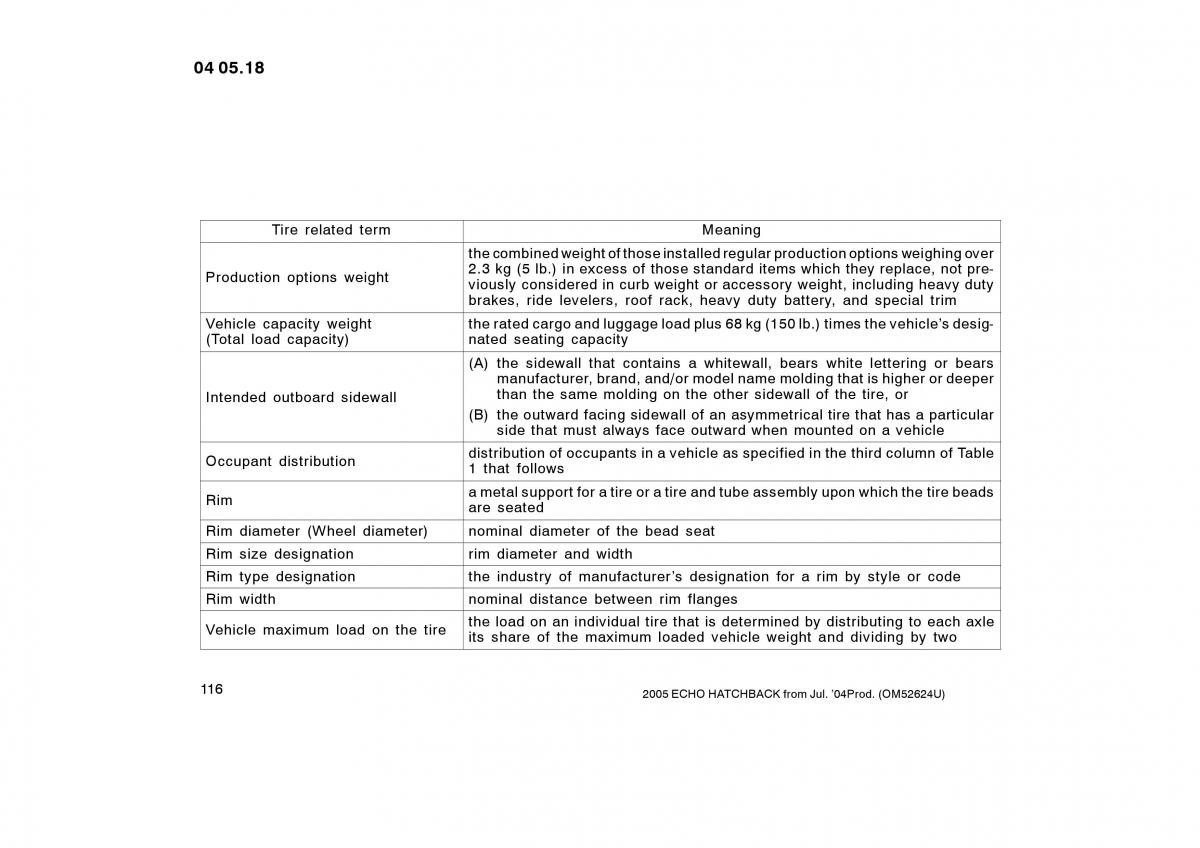

04 05.18
Tire related term Meaning
the combined weight of those installed regular production options weighing over
Production options weight 2.3 kg (5 lb.) in excess of those standard items which they replace, not pre-
viously considered in curb weight or accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim
Vehicle capacity weight the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s desig-
(Total load capacity) nated seating capacity
(A) the sidewall that contains a whitewall, bears white lettering or bears
manufacturer, brand, and/or model name molding that is higher or deeper
Intended outboard sidewall than the same molding on the other sidewall of the tire, or
(B) the outward facing sidewall of an asymmetrical tire that has a particular
side that must always face outward when mounted on a vehicle
Occupant distribution distribution of occupants in a vehicle as specified in the third column of Table
1 that follows
Rim a metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)nominal diameter of the bead seat
Rim size designation rim diameter and width
Rim type designation the industry of manufacturer’s designation for a rim by style or code
Rim width nominal distance between rim flanges
the load on an individual tire that is determined by distributing to each axle
Vehicle maximum load on the tire
its share of the maximum loaded vehicle weight and dividing by two
116 2005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
