text version of content this owner's manual page from owners manual to the vehicle Lancia Y, year of production 1996 - 2003:

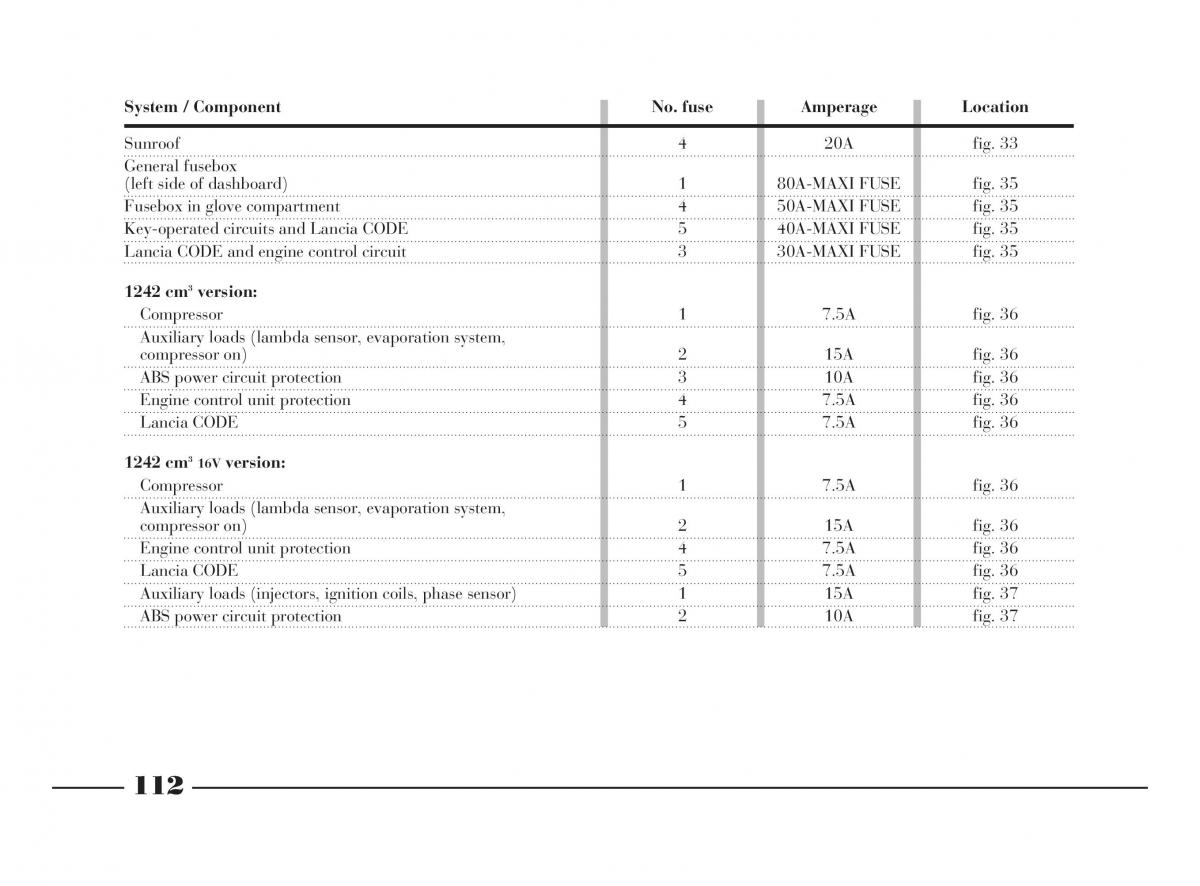

4C090-119 ING 13-03-2008 12:51 Pagina 112 System / Component No. fuse Amperage Location Sunroof 4 20A fig. 33 General fusebox (left side of dashboard) 1 80A-MAXI FUSEfig. 35 Fusebox in glove compartment 4 50A-MAXI FUSEfig. 35 Key-operated circuits and Lancia CODE 5 40A-MAXI FUSEfig. 35 Lancia CODE and engine control circuit3 30A-MAXI FUSEfig. 35 1242 cm3 version: Compressor 1 7.5A fig. 36 Auxiliary loads (lambda sensor, evaporation system, compressor on) 2 15A fig. 36 ABS power circuit protection 3 10A fig. 36 Engine control unit protection 4 7.5A fig. 36 Lancia CODE 5 7.5A fig. 36 les 1242 cm3 16V version: 00 Compressor 1 7.5A fig. 36 Auxiliary loads (lambda sensor, evaporation system, compressor on) 2 15A fig. 36 ed Engine control unit protection 4 7.5A fig. 36 Lancia CODE 5 7.5A fig. 36 Auxiliary loads (injectors, ignition coils, phase sensor)115Afig. 37 az- ABS power circuit protection 2 10A fig. 37 ve 112 fG
