text version of content this owner's manual page from owners manual to the vehicle Peugeot 306, year of production 1999 - 2002:
40

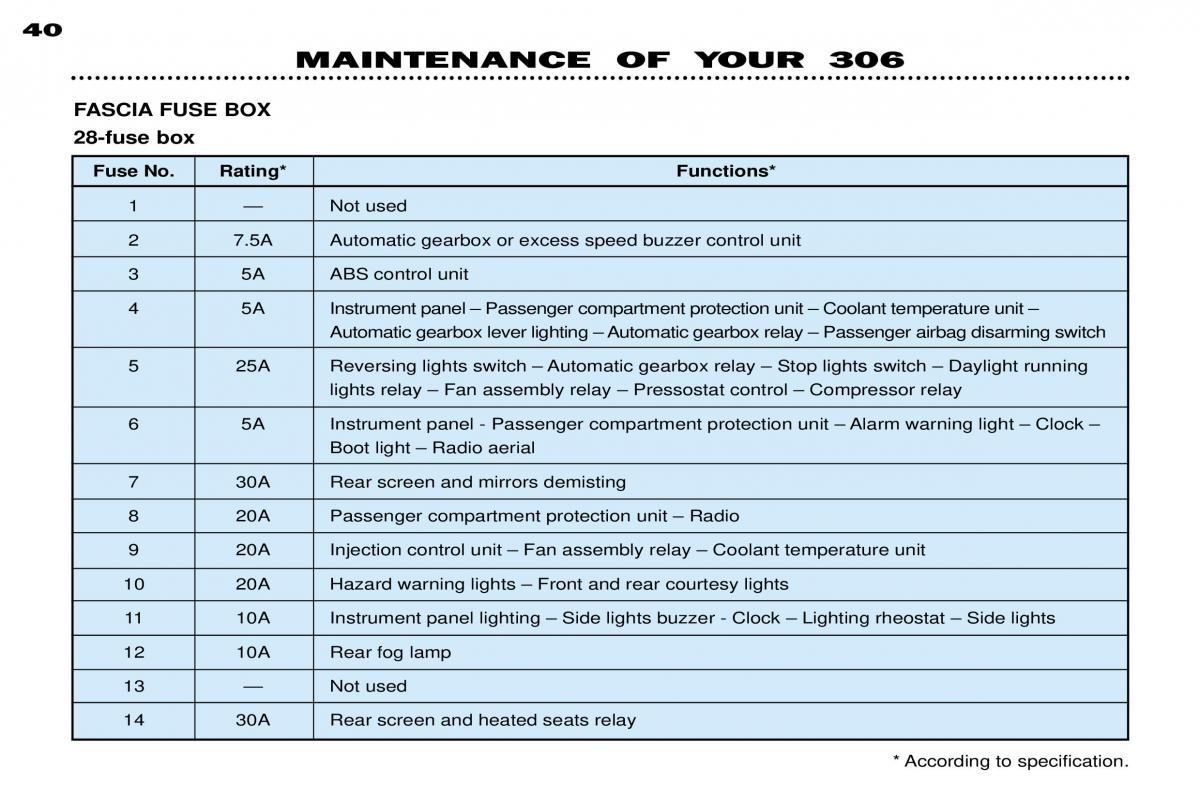

MAINTENANCE OF YOUR 306
FASCIAFUSE BOX
28-fuse box
Fuse No. Rating* Functions*
1 — Not used
2 7.5A Automatic gearbox or excess speed buzzer control unit
3 5A ABS control unit
4 5A Instrument panel – Passenger compartment protection unit – Coolant temperature unit –
Automatic gearbox relay – Passenger airbag disarming switchAutomatic gearbox lever lighting –
5 25A Reversing lights switch – Automatic gearbox relay – Stop lights switch – Daylight running
lights relay – Fan assembly relay – Pressostat control – Compressor relay
6 5A Instrument panel - Passenger compartment protection unit – Alarm warning light – Clock –
Boot light – Radio aerial
7 30A Rear screen and mirrors demisting
8 20A Passenger compartment protection unit – Radio
9 20A Injection control unit – Fan assembly relay – Coolant temperature unit
10 20A Hazard warning lights – Front and rear courtesy lights
11 10A Instrument panel lighting – Side lights buzzer - Clock – Lighting rheostat – Side lights
12 10A Rear fog lamp
13 — Not used
14 30A Rear screen and heated seats relay
* According to specification.
