owners manual Lancia Thesis

owners manual Lancia Thesis - year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 - Lancia Thesis owners manual EN

Document: pdf (5.2 MB) 386 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Lancia Thesis, year of production 2001 - 2009:

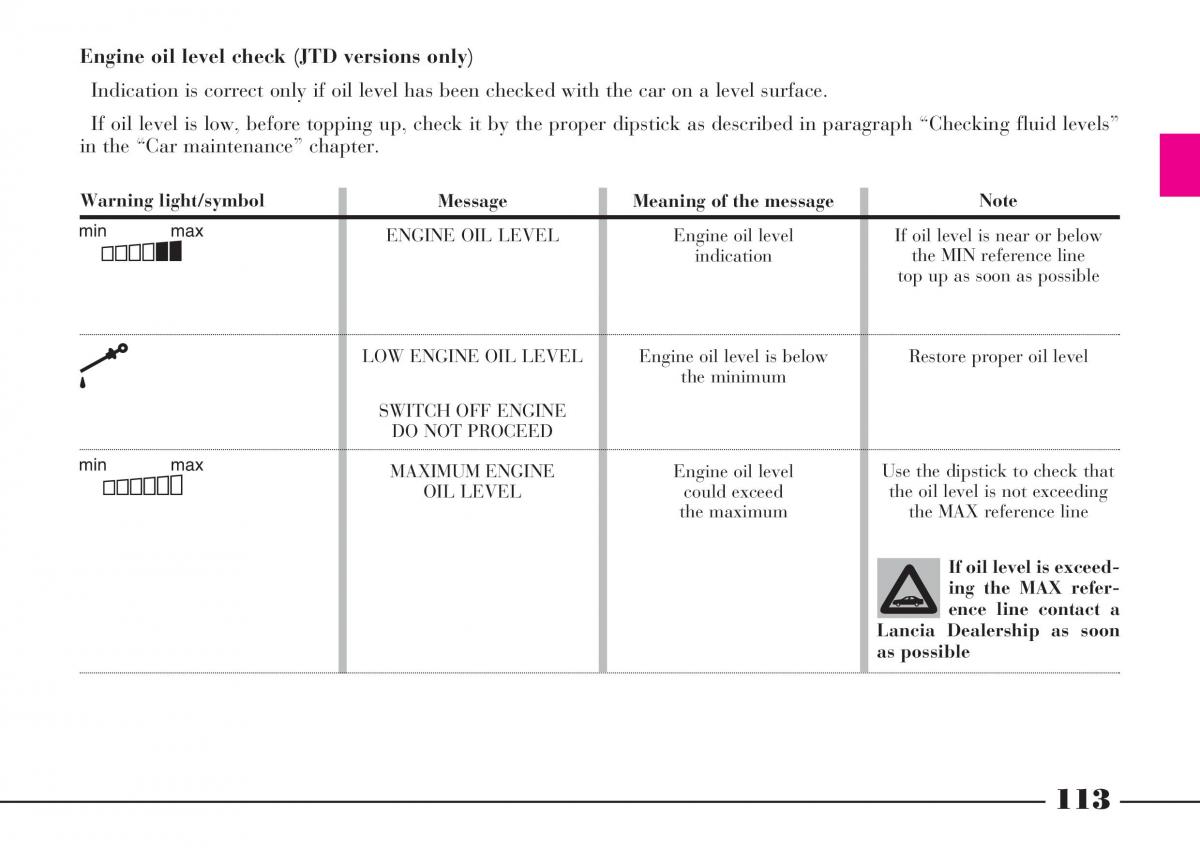

Engine oil level check (JTD versions only) Indication is correct only if oil level has been checked with the car on a level surface. If oil level is low, before topping up, check it by the proper dipstick as described in paragraph “Checking fluid levels” in the “Car maintenance” chapter. Warning light/symbol Message Meaning of the message Note ENGINE OIL LEVEL Engine oil level If oil level is near or below Ç indication the MIN reference line top up as soon as possible LOW ENGINE OIL LEVELEngine oil level is below Restore proper oil level k the minimum SWITCH OFF ENGINE DO NOT PROCEED Ñ MAXIMUM ENGINE Engine oil level Use the dipstick to check that OIL LEVEL could exceed the oil level is not exceeding the maximum the MAX reference line If oil level is exceed- ing the MAX refer- ence line contact a Lancia Dealership as soon as possible 113
