text version of content this owner's manual page from owners manual to the vehicle Peugeot 5008, year of production 2017:

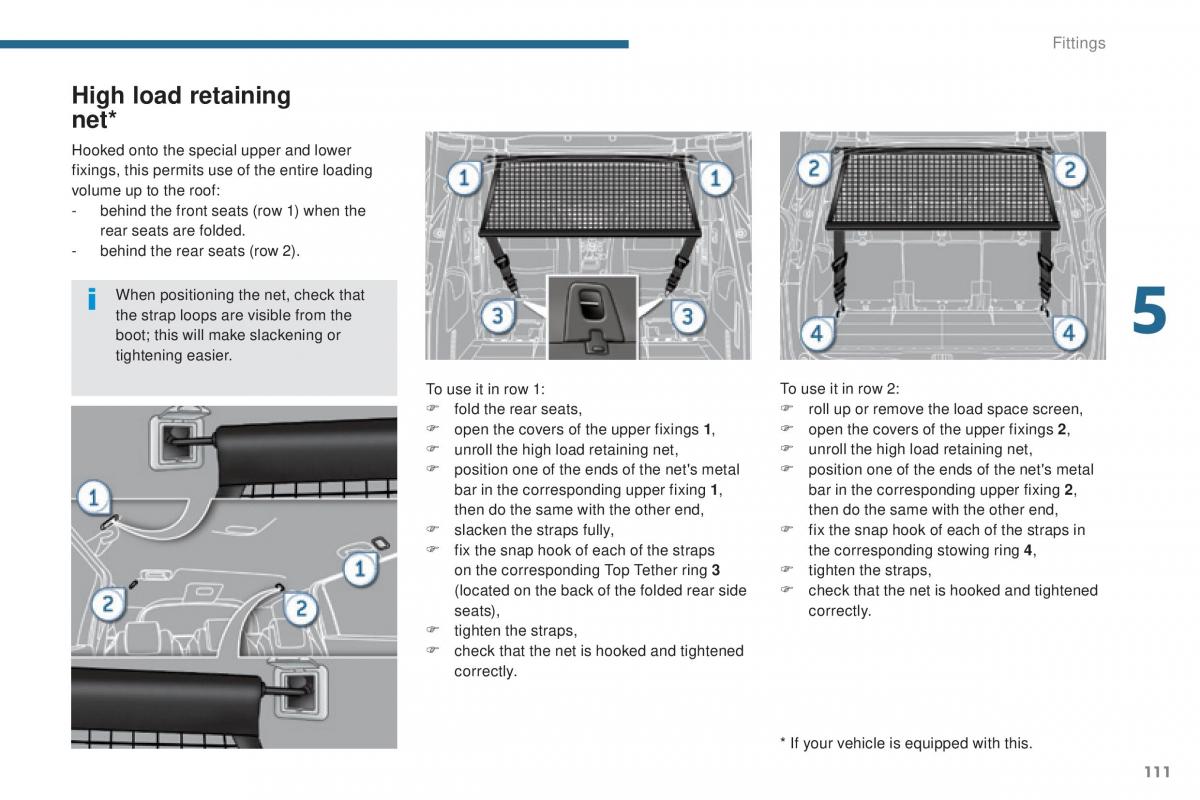

Fittings High load retaining net* Hooked onto the special upper and lower fixings, this permits use of the entire loading volume up to the roof: - behind the front seats (row 1) when the rear seats are folded. - behind the rear seats (row 2). When positioning the net, check that the strap loops are visible from the boot; this will make slackening or 5 tightening easier. To use it in row 1: To use it in row 2: F fold the rear seats, F roll up or remove the load space screen, F open the covers of the upper fixings 1,F open the covers of the upper fixings 2, F unroll the high load retaining net,F unroll the high load retaining net, F position one of the ends of the net's metal F position one of the ends of the net's metal bar in the corresponding upper fixing 1, bar in the corresponding upper fixing 2, then do the same with the other end,then do the same with the other end, F slacken the straps fully, F fix the snap hook of each of the straps in F fix the snap hook of each of the straps the corresponding stowing ring 4, on the corresponding Top Tether ring 3 F tighten the straps, (located on the back of the folded rear side F check that the net is hooked and tightened seats), correctly. F tighten the straps, F check that the net is hooked and tightened correctly. * If your vehicle is equipped with this. 111 5008_en_Chap05_amenagements_ed01-2015
