text version of content this owner's manual page from owners manual to the vehicle Peugeot RCZ, year of production 2010:

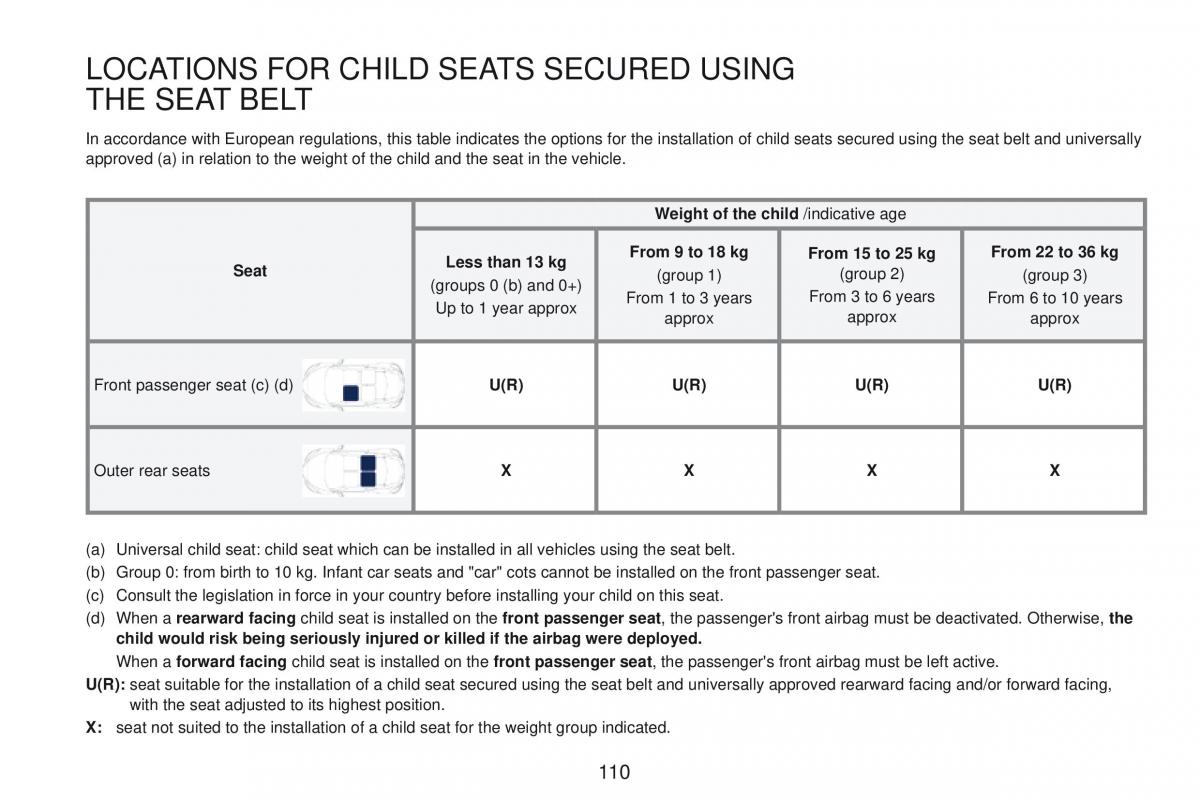

LOCATIONS FOR CHILD SEATS SECURED USING
THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
Weight of the child /indicative age
Less than 13 kg From 9 to 18 kg From 15 to 25 kg From 22 to 36 kg
Seat (groups 0 (b) and 0+) (group 1) (group 2) (group 3)
Up to 1 year approxFrom 1 to 3 years From 3 to 6 years From 6 to 10 years
approx approx approx
Front passenger seat (c) (d)U(R) U(R) U(R) U(R)
Outer rear seats X X X X
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car" cots cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
(d) When a rearward facing child seat is installed on the front passenger seat, the passenger's front airbag must be deactivated. Otherwise, the
child would risk being seriously injured or killed if the airbag were deployed.
When a forward facing child seat is installed on the front passenger seat, the passenger's front airbag must be left active.
U(R): seat suitable for the installation of a child seat secured using the seat belt and universally approved rearward facing and/or forward facing,
with the seat adjusted to its highest position.
X: seat not suited to the installation of a child seat for the weight group indicated.
110
