text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156 GTA, year of production 1997 - 2006:

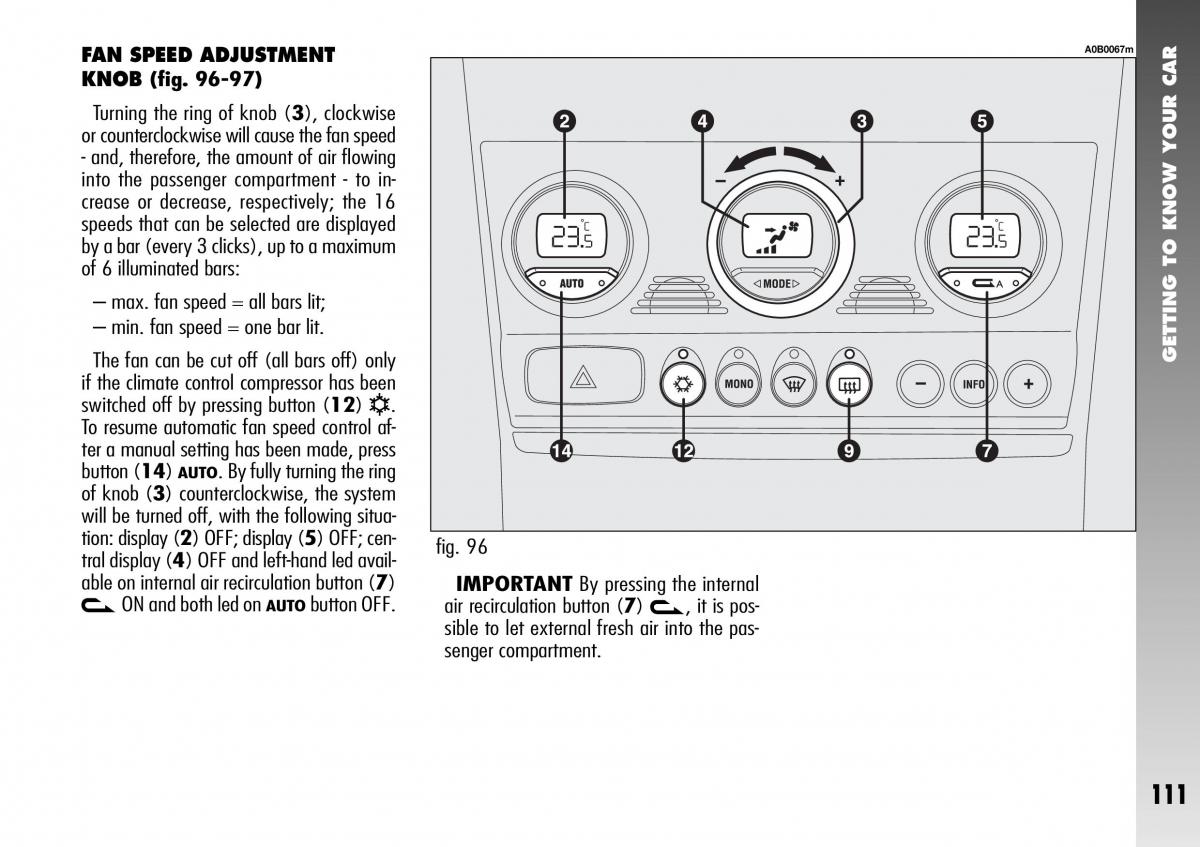

FAN SPEED ADJUSTMENT A0B0067m KNOB (fig. 96-97) Turning the ring of knob (3), clockwise or counterclockwise will cause the fan speed - and, therefore, the amount of air flowing into the passenger compartment - to in- crease or decrease, respectively; the 16 speeds that can be selected are displayed by a bar (every 3 clicks), up to a maximum of 6 illuminated bars: – max. fan speed = all bars lit; – min. fan speed = one bar lit. The fan can be cut off (all bars off) only GETTING TO KNOW YOUR CAR if the climate control compressor has been switched off by pressing button (12) . √ To resume automatic fan speed control af- ter a manual setting has been made, press button ( 14) AUTO. By fully turning the ring of knob (3) counterclockwise, the system will be turned off, with the following situa- tion: display (2) OFF; display (5) OFF; cen- fig. 96 tral display (4) OFF and left-hand led avail- able on internal air recirculation button (7) IMPORTANTBy pressing the internal vON and both led on AUTO button OFF. air recirculation button (7) , it is pos- v sible to let external fresh air into the pas- senger compartment. 111
