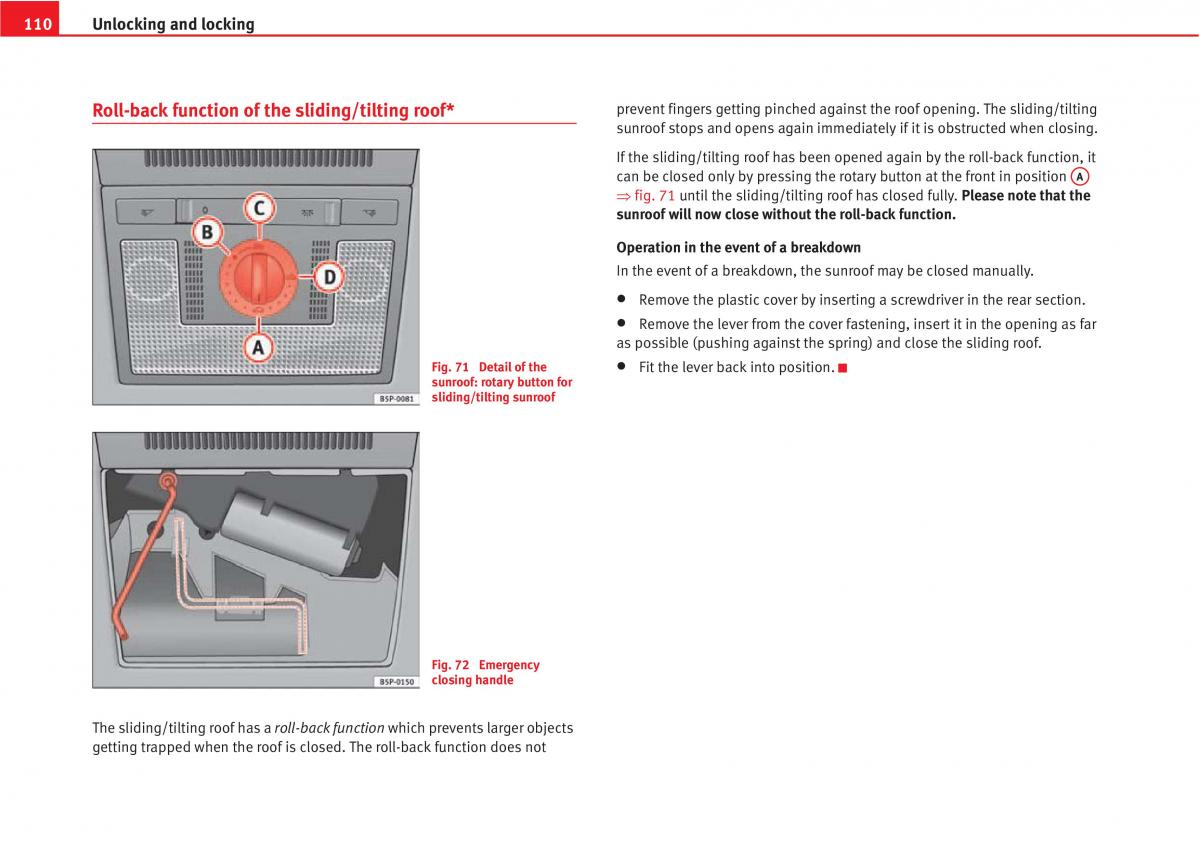

110 Unlocking and locking
Roll-back function of the sliding/tilting roof* prevent fingers getting pinched against the roof opening. The sliding/tilting
sunroof stops and opens again immediately if it is obstructed when closing.
If the sliding/tilting roof has been opened again by the roll-back function, it
A
can be closed only by pressing the rotary button at the front in position A
fig. 71 until the sliding/tilting roof has closed fully. Please note that the
sunroof will now close without the roll-back function.
Operation in the event of a breakdown
In the event of a breakdown, the sunroof may be closed manually.
• Remove the plastic cover by inserting a screwdriver in the rear section.
• Remove the lever from the cover fastening, insert it in the opening as far
as possible (pushing against the spring) and close the sliding roof.
Fig. 71 Detail of the • Fit the lever back into position.
sunroof: rotary button for
sliding/tilting sunroof
Fig. 72 Emergency
closing handle
The sliding/tilting roof has a roll-back function which prevents larger objects
getting trapped when the roof is closed. The roll-back function does not
