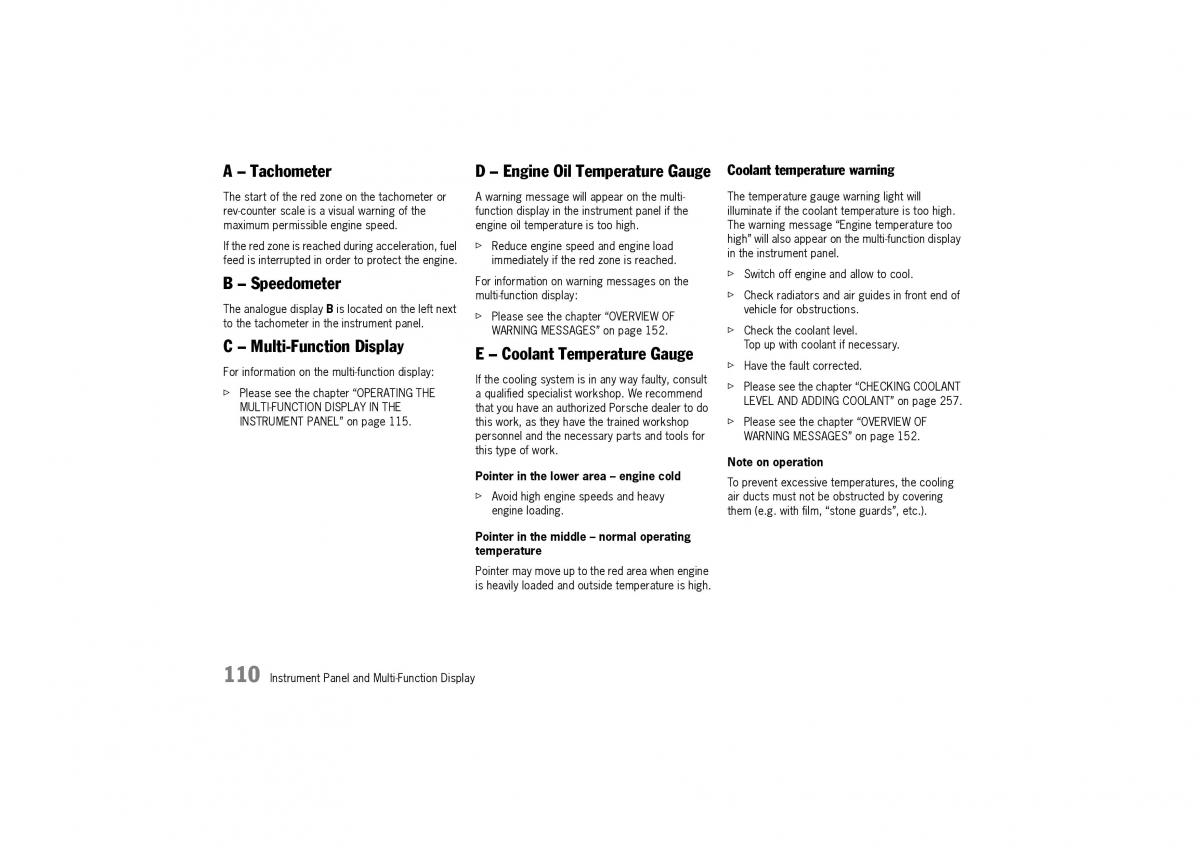

text version of content this owner's manual page from owners manual to the vehicle Porsche Panamera, year of production 2009:
A – Tachometer D – Engine Oil Temperature GaugeCoolant temperature warning
The start of the red zone on the tachometer or A warning message will appear on the multi-The temperature gauge warning light will
rev-counter scale is a visual warning of the function display in the instrument panel if the illuminate if the coolant temperature is too high.
maximum permissible engine speed.engine oil temperature is too high.The warning message “Engine temperature too
If the red zone is reached during acceleration, fuel f Reduce engine speed and engine load high” will also appear on the multi-function display
feed is interrupted in order to protect the engine.immediately if the red zone is reached.in the instrument panel.
B – Speedometer For information on warning messages on the f Switch off engine and allow to cool.
multi-function display:f Check radiators and air guides in front end of
The analogue display B is located on the left next f Please see the chapter “OVERVIEW OF vehicle for obstructions.
to the tachometer in the instrument panel.WARNING MESSAGES” on page 152.f Check the coolant level.
C – Multi-Function DisplayE – Coolant Temperature GaugeTop up with coolant if necessary.
For information on the multi-function display:f Have the fault corrected.
f Please see the chapter “OPERATING THE If the cooling system is in any way faulty, consult f Please see the chapter “CHECKING COOLANT
a qualified specialist workshop. We recommend LEVEL AND ADDING COOLANT” on page 257.
MULTI-FUNCTION DISPLAY IN THE that you have an authorized Porsche dealer to do
INSTRUMENT PANEL” on page 115.this work, as they have the trained workshop f Please see the chapter “OVERVIEW OF
personnel and the necessary parts and tools for WARNING MESSAGES” on page 152.
this type of work.
Note on operation
Pointer in the lower area – engine coldTo prevent excessive temperatures, the cooling
f Avoid high engine speeds and heavy air ducts must not be obstructed by covering
engine loading. them (e.g. with film, “stone guards”, etc.).
Pointer in the middle – normal operating
temperature
Pointer may move up to the red area when engine
is heavily loaded and outside temperature is high.
110 Instrument Panel and Multi-Function Display
