text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

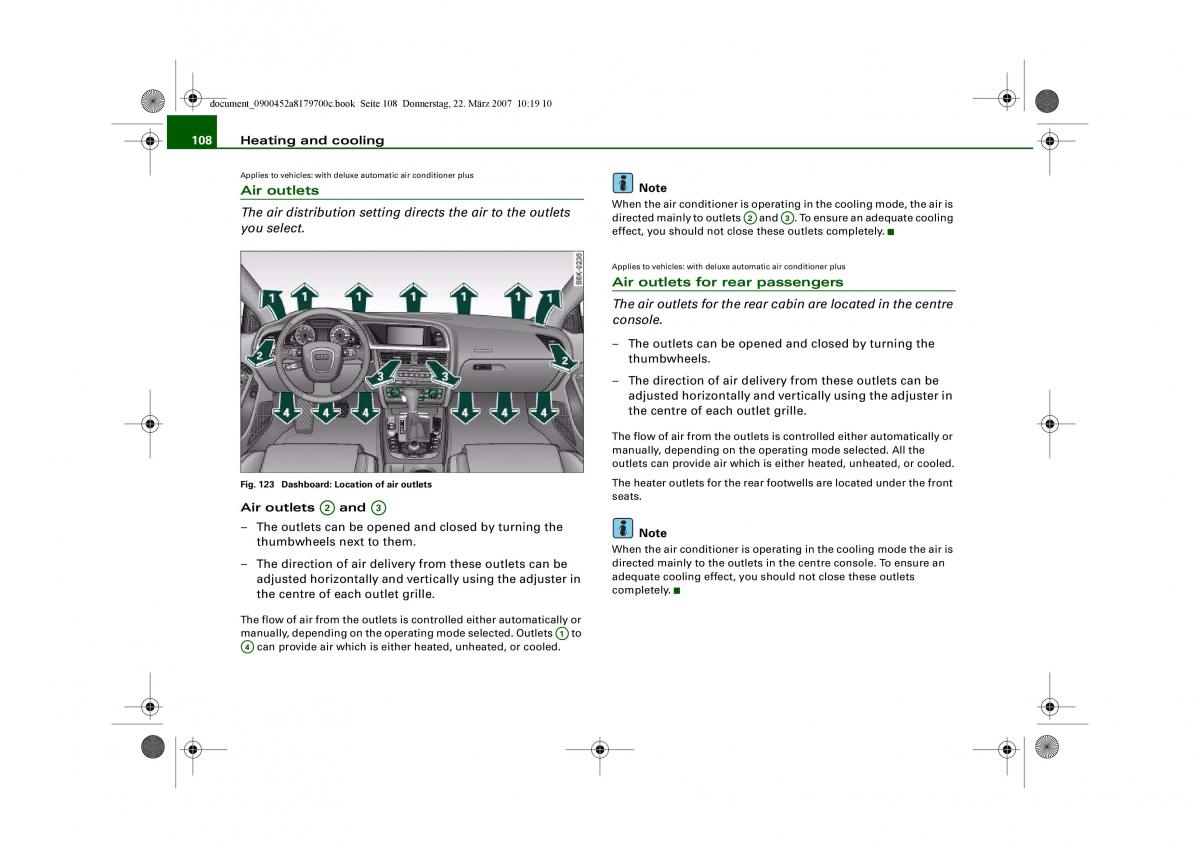

document_0900452a8179700c.book Seite 108 Donnerstag, 22. März 2007 10:19 10 108 Heating and cooling Applies to vehicles: with deluxe automatic air conditioner plus Air outlets Note The air distribution setting directs the air to the outlets When the air conditioner is operatin g in the cooling mode, the air is 2 3 directed mainly to outlets and . To ensure an adequate cooling you select. A A effect, you should not close these outlets completely. Applies to vehicles: with deluxe automatic air conditioner plus Air outlets for rear passengers The air outlets for the rear cabin are located in the centre console. – The outlets can be opened and closed by turning the thumbwheels. – The direction of air delivery from these outlets can be adjusted horizontally and vertically using the adjuster in the centre of each outlet grille. The flow of air from the outlets is controlled either automatically or manually, depending on the operating mode selected. All the outlets can provide air which is either heated, unheated, or cooled. Fig. 123 Dashboard: Location of air outlets The heater outlets for the rear f ootwells are located under the front seats. Air outlets 2 and 3 A A – The outlets can be opened and closed by turning the Note thumbwheels next to them. When the air conditioner is operating in the cooling mode the air is – The direction of air delivery from these outlets can be directed mainly to the outlets in the centre console. To ensure an adjusted horizontally and vertically using the adjuster in adequate cooling effect, you should not close these outlets the centre of each outlet grille. completely. The flow of air from the outlets is controlled either automatically or 1 manually, depending on the operating mode selected. Outlets to A 4 A can provide air which is either heated, unheated, or cooled.
