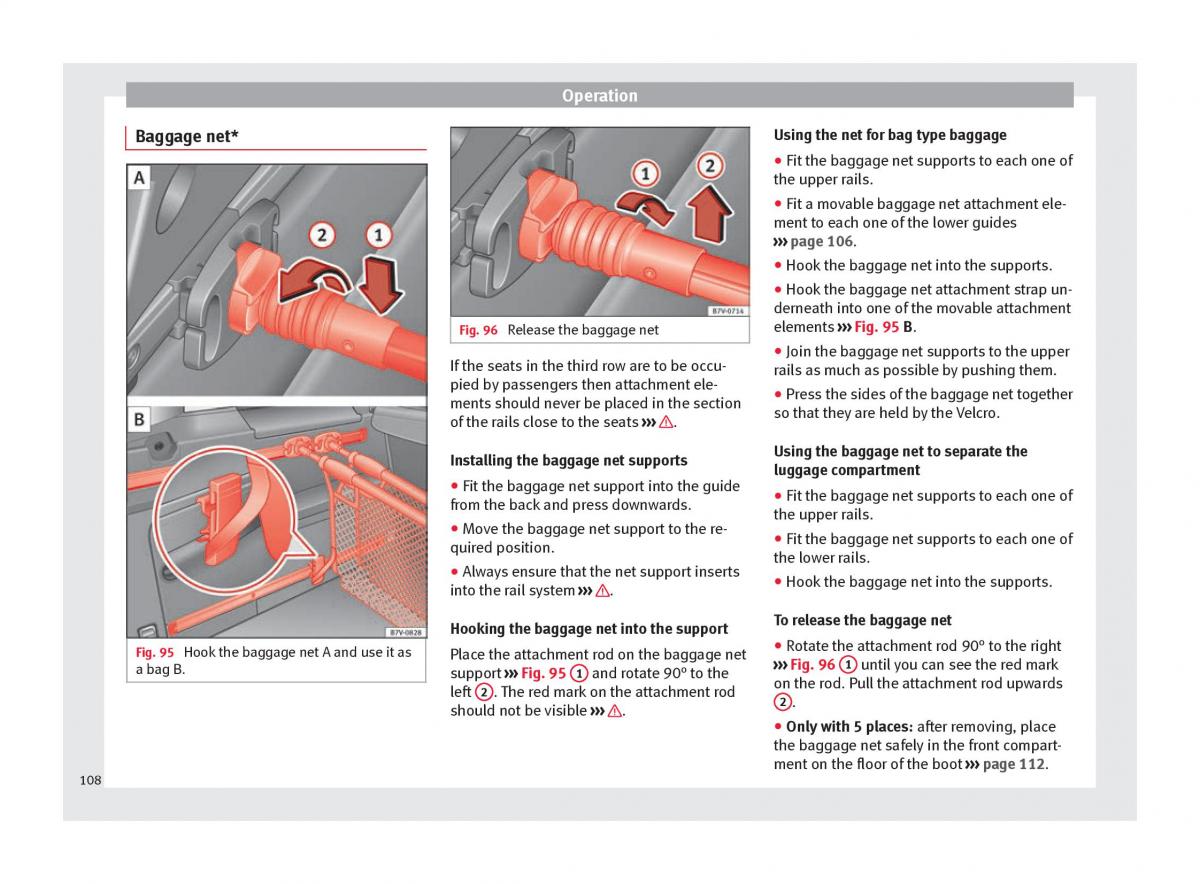

Operation Using the net for bag type baggage Baggage net* ●Fit the baggage net supports to each one of the upper rails. ●Fit a movable baggage net attachment ele- ment to each one of the lower guides ››› page 106. ●Hook aggage net into the supports. the b ●Hook the baggage net attachment strap un- derneath into one of the movable attachment elements ››› Fig. 95 B. Fig. 96 Release the baggage net ●Join the baggage net supports to the upper If the seats in the third row are to be occu- rails as much as possible by pushing them. pied by passengers then attachment ele- ●Press the sides of the baggage net together ments should never be placed in the section so that they are held by the Velcro. of the rails close to the seats ››› . Using the baggage net to separate the Installing the baggage net supports luggage compartment ●Fit the baggage net support into the guide ●Fit the baggage net supports to each one of from the back and press downwards. the upper rails. ●Move the baggage net support to the re- ●Fit the baggage net supports to each one of quired position. the lower rails. ●Always ensure that the net support inserts ●Hook the baggage net into the supports. into the rail system ››› . To release the baggage net Hooking the baggage net into the support ●Rotate the attachment rod 90° to the right Fig. 95 Hook the baggage net A and use it as Place the attachment rod on the baggage net ››› Fig. 96 1 until you can see the red mark a bag B. support ››› Fig. 95 1 and rotate 90° to the on the rod. Pull the attachment rod upwards left 2 . The red mark on the attachment rod 2 . should not be visible ››› . ●Only with 5 places: after removing, place the baggage net safely in the front compart- ment on the floor of the boot ››› page 112. 108
