text version of content this owner's manual page from owners manual to the vehicle Ford B-Max, year of production 2012:

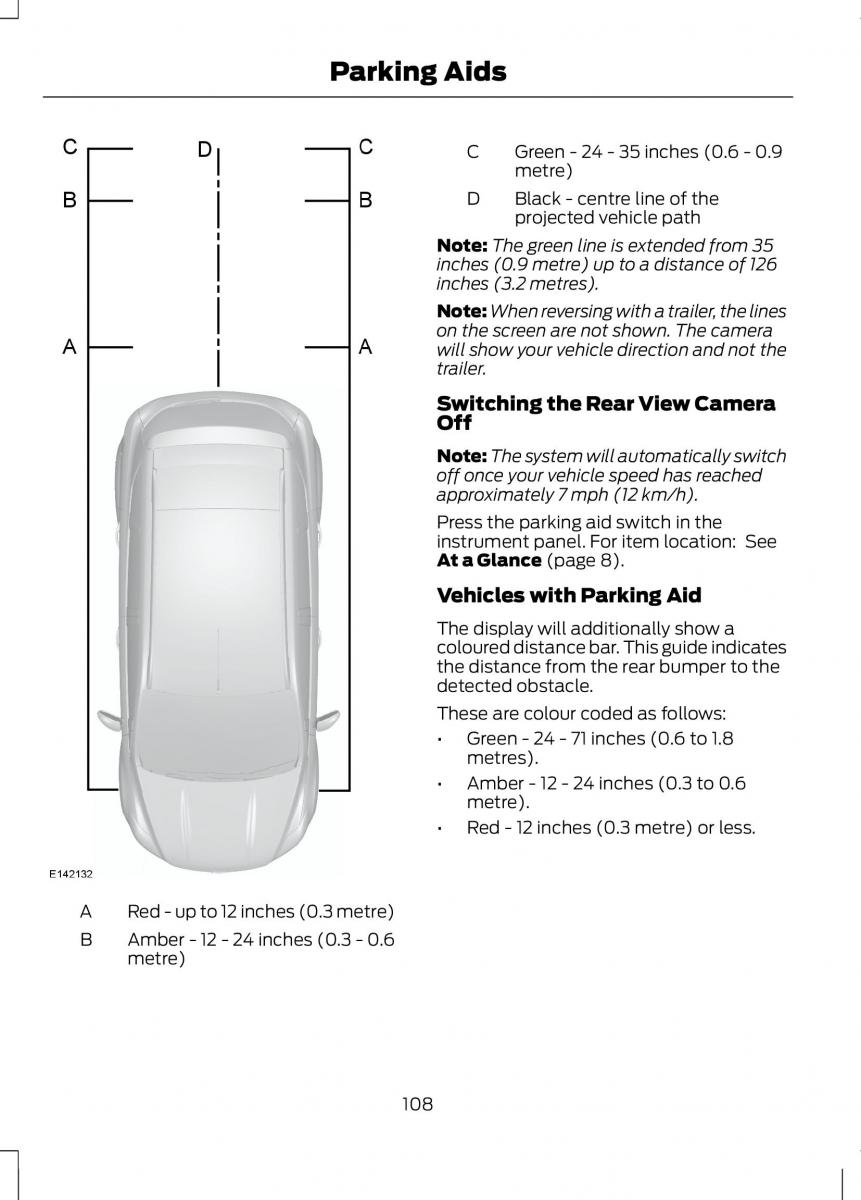

Parking Aids C Green - 24 - 35 inches (0.6 - 0.9 metre) D Black - centre line of the projected vehicle path Note:The green line is extended from 35 inches (0.9 metre) up to a distance of 126 inches (3.2 metres). Note:When reversing with a trailer, the lines on the screen are not shown. The camera will show your vehicle direction and not the trailer. Switching the Rear View Camera Off Note:The system will a utomatically switch off once your vehicle speed has reached approximately 7 mph (12 km/h). Press the parking aid switch in the instrument panel. For item location: See At a Glance (page 8). Vehicles with Parking Aid The display will additionally show a coloured distance bar. This guide indic ates the distance from the rear bumper to the detected obstacle. These are colour coded as follows: • Green - 24 - 71 inches (0.6 to 1.8 metres). • Amber - 12 - 24 inches (0.3 to 0.6 metre). • Red - 12 inches (0.3 metre) or less. A Red - up t o 12 inche s (0.3 metre) B Amber - 12 - 24 inches (0.3 - 0.6 metre) 108
