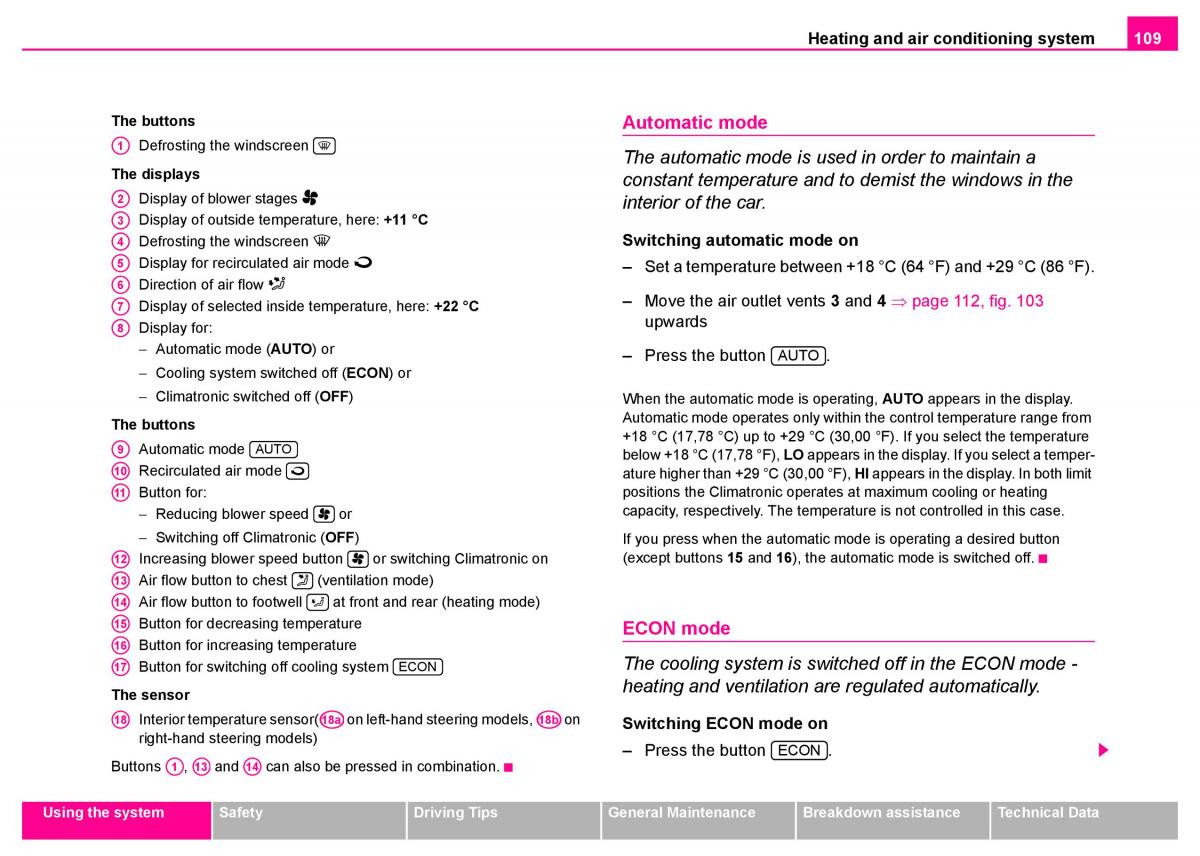

Heating and air conditioning system 109
The buttons Automatic mode
1 Defrosting the windscreen
A The automatic mode is used in order to maintain a
The displays constant temperature and to demist the windows in the
2 Display of blower stages
A interior of the car.
3 Display of outside temperature, here: +11 °C
A
4 Switching automatic mode on
ADefrosting the windscreen
5 Display for recirculated air mode
A – Set a temperature between +18 °C (64 °F) and +29 °C (86 °F).
6 Direction of air flow
A – Move the air outlet vents 3 and 4 ⇒ page 112, fig. 103
7
ADisplay of selected inside temperature, here: +22 °C upwards
8 Display for:
A
Automatic mode (AUTO) or – Press the button AUTO .
Cooling system switched off (ECON) or
Climatronic switched off (OFF) When the automatic mode is operating, AUTO appears in the display.
The buttons Automatic mode operates only within the control temperature range from
9 AUTO +18 °C (17,78 °C) up to +29 °C (30,00 °F). If you select the temperature
AAutomatic mode below +18 °C (17,78 °F), LO appears in the display. If you select a temper-
10 Recirculated air mode
A ature higher than +29 °C (30,00 °F), HI appears in the display. In both limit
11 Button for: positions the Climatronic operates at maximum cooling or heating
A
Reducing blower speed or capacity, respectively. The temperature is not controlled in this case.
Switching off Climatronic (OFF) If you press when the automatic mode is operating a desired button
12 Increasing blower speed button or switching Climatronic on(except buttons 15 and 16), the automatic mode is switched off.
A
13 Air flow button to chest (ventilation mode)
A
14
AAir flow button to footwell at front and rear (heating mode)
15 Button for decreasing temperature
A ECON mode
16 Button for increasing temperature
A
17 ECON The cooling system is switched off in the ECON mode -
AButton for switching off cooling system
The sensor heating and ventilation are regulated automatically.
18 18a 18b
AInterior temperature sensor( A on left-hand steering models, A on Switching ECON mode on
right-hand steering models) – Press the button ECON .
1 13 14
Buttons A, A and A can also be pressed in combination.
