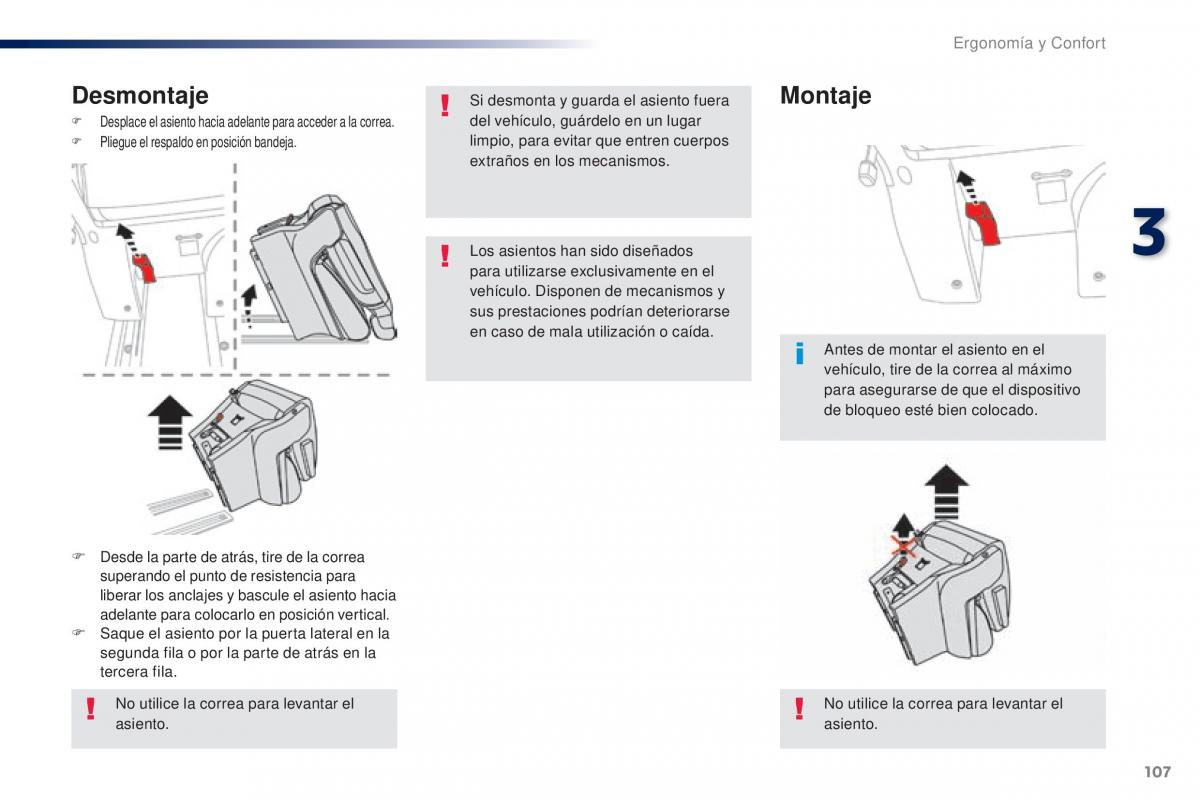

Ergonomía y Confort
Desmontaje Si desmonta y guarda el asiento fuera Montaje
F Desplace el asiento hacia adelante para acceder a la correa.del vehículo, guárdelo en un lugar
F Pliegue el respaldo en posición bandeja.limpio, para evitar que entren cuerpos
extraños en los mecanismos.
Los asientos han sido diseñados 3
para utilizarse exclusivamente en el
vehículo. Disponen de mecanismos y
sus prestaciones podrían deteriorarse
en caso de mala utilización o caída.
Antes de montar el asiento en el
vehículo, tire de la correa al máximo
para asegurarse de que el dispositivo
de bloqueo esté bien colocado.
F Desde la parte de atrás, tire de la correa
superando el punto de resistencia para
liberar los anclajes y bascule el asiento hacia
adelante para colocarlo en posición vertical.
F Saque el asiento por la puerta lateral en la
segunda fila o por la parte de atrás en la
tercera fila.
No utilice la correa para levantar el No utilice la correa para levantar el
asiento. asiento.
107
Traveller-VP_es_Chap03_ergonomie-et-confort_ed01-2016
