COR_ING_0707 Seite 107 Mittwoch, 1. August 2007 6:25 18

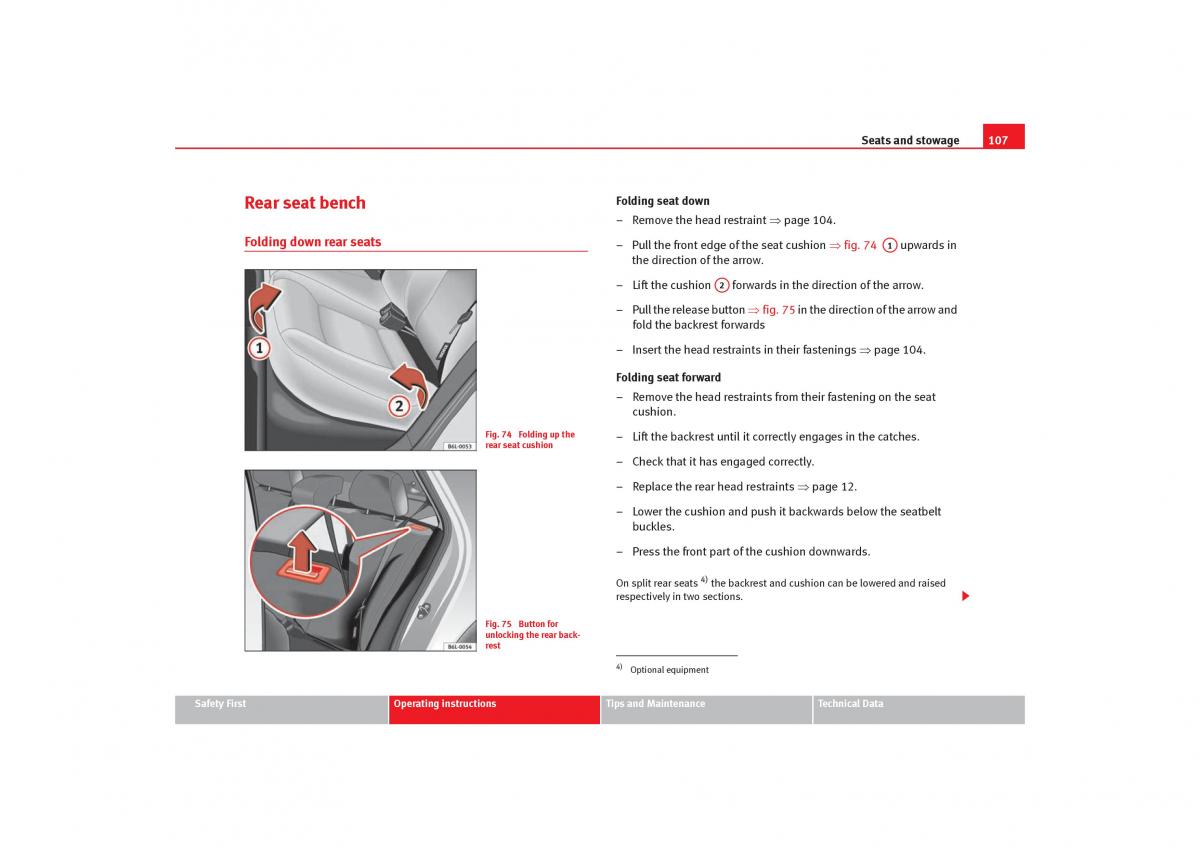

Seats and stowage 107
Rear seat bench Folding seat down
– Remove the head restraint ⇒ page104.
Folding down rear seats – Pull the front edge of the seat cushion ⇒ fig. 74 1 upwards in
A
the direction of the arrow.
2
– Lift the cushion A forwards in the direction of the arrow.
– Pull the release button ⇒fig. 75 in the direction of the arrow and
fold the backrest forwards
– Insert the head restraints in their fastenings ⇒ page 104.
Folding seat forward
– Remove the head restraints from their fastening on the seat
cushion.
Fig. 74 Folding up the – Lift the backrest until it correctly engages in the catches.
rear seat cushion
– Check that it has engaged correctly.
– Replace the rear head restraints ⇒ page 12.
– Lower the cushion and push it backwards below the seatbelt
buckles.
– Press the front part of the cushion downwards.
4)
On split rear seats the backrest and cushion can be lowered and raised
respectively in two sections.
Fig. 75 Button for
unlocking the rear back-
rest
4) Optional equipment
