owners manual Honda Prelude

owners manual Honda Prelude - year of production: 1987, 1988, 1989, 1990, 1991 - Honda Prelude III 3 owners manual EN

Document: pdf (2.03 MB) 143 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Honda Prelude, year of production 1987 - 1991:

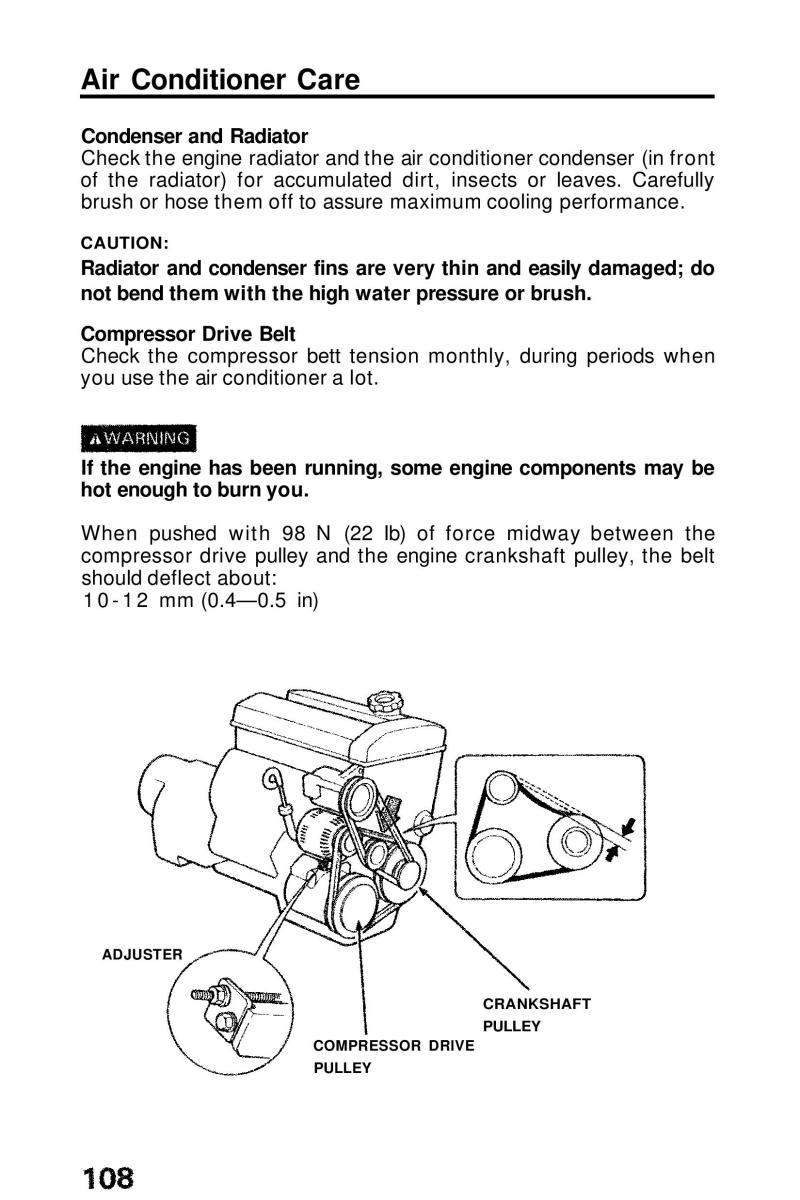

Main Menu ▲ ▼ Air Conditioner Care Condenser and Radiator Check the engine radiator and the air conditioner condenser (in front of the radiator) for accumulated dirt, insects or leaves. Carefully brush or hose them off to assure maximum cooling performance. CAUTION: Radiator and condenser fins are very thin and easily damaged; do not bend them with the high water pressure or brush. Compressor Drive Belt Check the compressor bett tension monthly, during periods when you use the air conditioner a lot. If the engine has been running, some engine components may be hot enough to burn you. When pushed with 98 N (22 Ib) of force midway between the compressor drive pulley and the engine crankshaft pulley, the belt should deflect about: 1012 mm (0.4—0.5 in) ADJUSTER CRANKSHAFT PULLEY COMPRESSOR DRIVE PULLEY
