text version of content this owner's manual page from owners manual to the vehicle Skoda Kodiaq, year of production 2016:

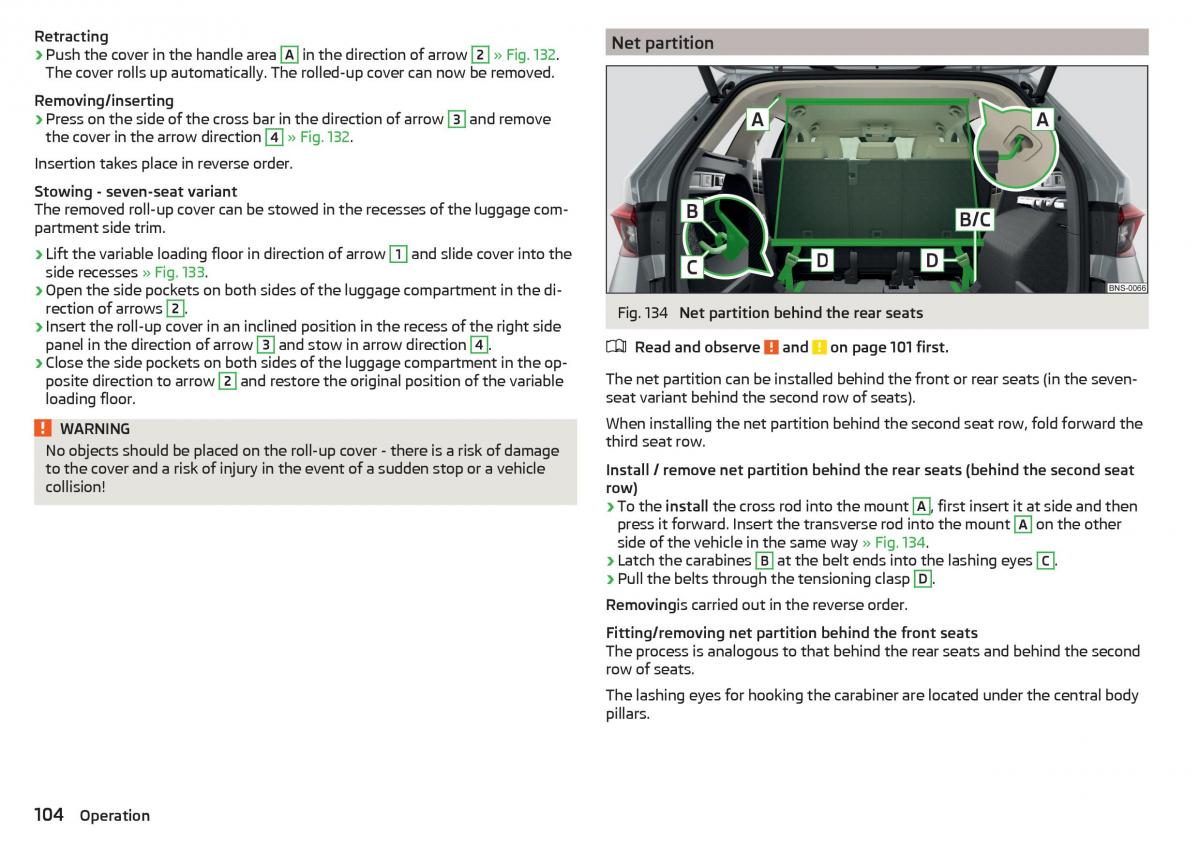

Retracting Net partition ›Push the cover in the handle area A in the direction of arrow ė » Fig. ĖĘė. 0he cover rolls up automatically. 0he rolled-up cover can now be removed. Removing/inserting ›Press on the side of the cross bar in the direction of arrow Ę and remove the cover in the arrow direction ę » Fig. ĖĘė. Insertion takes place in reverse order. Stowing - seven-seat variant 0he removed roll-up cover can be stowed in the recesses of the luggage com- partment side trim. ›Lift the variable loading floor in direction of arrow Ė and slide cover into the side recesses » Fig. ĖĘĘ. ›Open the side pockets on both sides of the luggage compartment in the di- rection of arrows ė . Fig. ĖĘę Net partition behind the rear seats ›Insert the roll-up cover in an inclined position in the recess of the right side panel in the direction of arrow Ę and stow in arrow direction ę . Read and observe and on page ĖĕĖ first. ›Close the side pockets on both sides of the luggage compartment in the op- posite direction to arrow ė and restore the original position of the variable0he net partition can be installed behind the front or rear seats (in the seven- loading floor. seat variant behind the second row of seats). 3hen installing the net partition behind the second seat row, fold forward the 3ARNING third seat row. No objects should be placed on the roll-up cover - there is a risk of damage to the cover and a risk of injury in the event of a sudden stop or a vehicleInstall / remove net partition behind the rear seats (behind the second seat collision! row) ›0o the install the cross rod into the mount A , first insert it at side and then press it forward. Insert the transverse rod into the mount A on the other side of the vehicle in the same way » Fig. ĖĘę. ›Latch the carabines B at the belt ends into the lashing eyes C . ›Pull the belts through the tensioning clasp D . Removingis carried out in the reverse order. Fitting/removing net partition behind the front seats 0he process is analogous to that behind the rear seats and behind the second row of seats. 0he lashing eyes for hooking the carabiner are located under the central body pillars. Ėĕę Operation
