text version of content this owner's manual page from owners manual to the vehicle Mercedes E, year of production 2009:

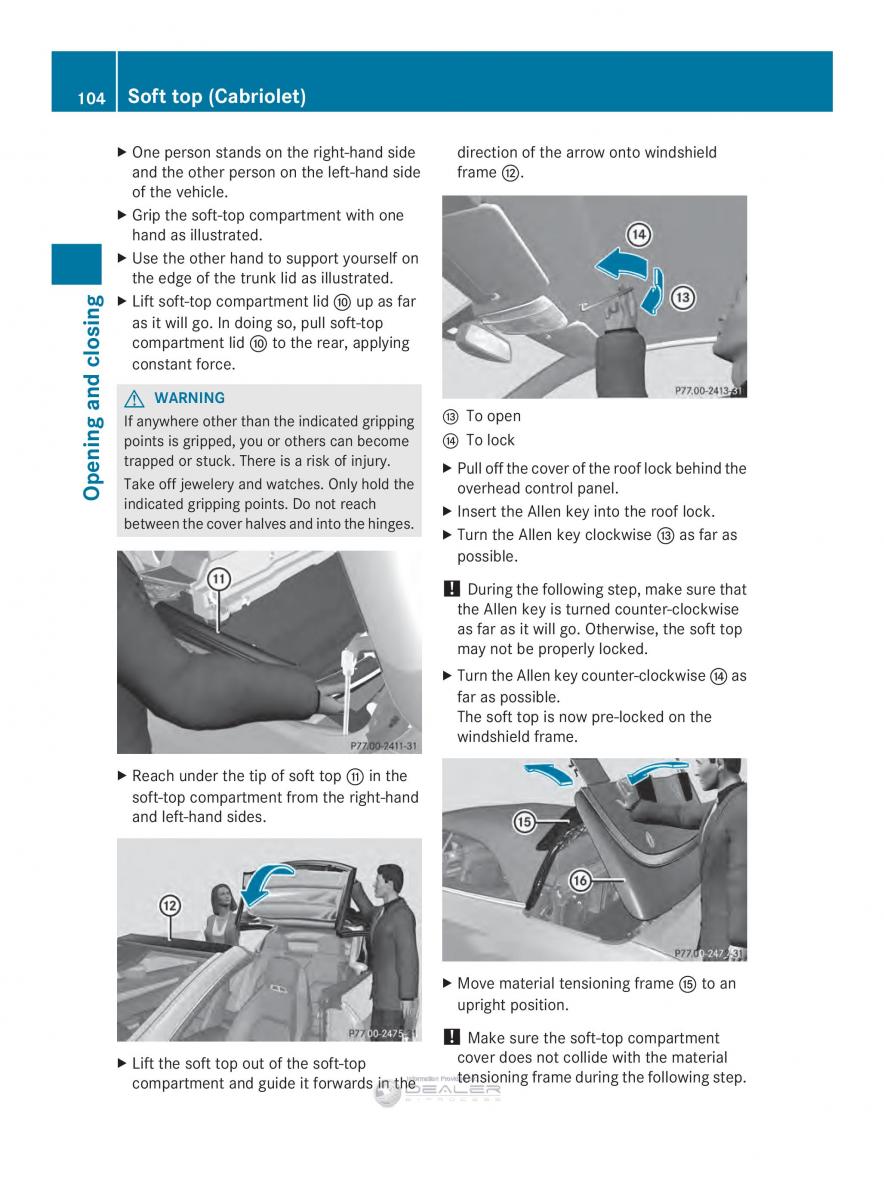

Soft top (Cabriolet) 104 X One person stands on the right-hand side direction of the arrow onto windshield and the other person on the left-hand side frame H. of the vehicle. X Grip the soft-top compartment with one hand as illustrated. X Use the other hand to support yourselfon the edge of the trunk lid as illustrated. X Lift soft-top compartment lid F up as far as it will go .Ind oing so, pull soft-top compartment lid F to the rear, applying constant force. G WARNING I To open If anywhere other than the indicated gripping J To lock points is gripped, you or others can become trapped or stuck. There is a risk of injury. X Pull off the cover of the roof lock behind the closing Take off jewelery and watches. Only hold the overhead control panel. and Opening indicated gripping points. Do not reach X Insert the Allen key into the roof lock. between the cover halves and into the hinges. X Turn the Allen key clockwise I as far as possible. ! During the following step, make sure that the Allen key is turned counter-clockwise as far as it will go. Otherwise, the soft top may not be properly locked. X Turn the Allen key counter-clockwise J as far as possible. The soft top is now pre-locked on the windshield frame. X Reach under the tip of soft top G in the soft-top compartment from the right-hand and left-hand sides. X Move material tensioning frame K to an upright position. ! Make sure the soft-top compartment cover does not collide with the material X Lift the soft top out of the soft-top tensioning frame during the following step. compartment and guide it forwards in the
