text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

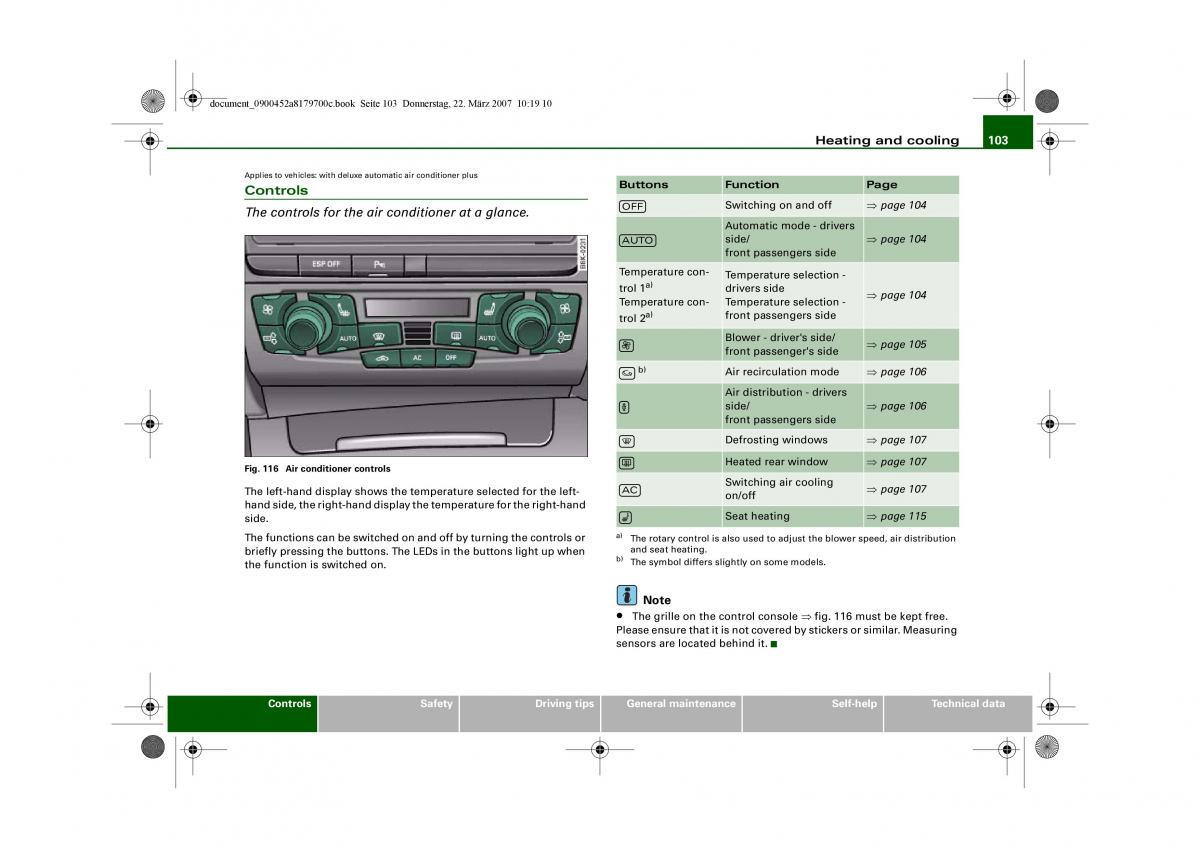

document_0900452a8179700c.book Seite 103 Donnerstag, 22. März 2007 10:19 10 Heating and cooling 103 Applies to vehicles: with deluxe automatic air conditioner plus Controls Buttons Function Page The controls for the air conditioner at a glance. OFF Switching on and off ⇒page104 Automatic mode - drivers AUTO side/ ⇒page104 front passengers side Temperature con- Temperature selection - a) trol 1 drivers side ⇒page104 Temperature con- Temperature selection - a) front passengers side trol 2 Blower - driver's side/ ⇒page105  front passenger's side  b) Air recirculation mode ⇒page106 Air distribution - drivers  side/ ⇒page106 front passengers side  Defrosting windows ⇒page107 Fig. 116 Air conditioner controls  Heated rear window ⇒page107 The left-hand display shows the temperature selected for the left- AC Switching air cooling ⇒page107 hand side, the right-hand display the temperature for the right-hand on/off side.  Seat heating ⇒page115 The functions can be switched on and off by turning the controls or a)The rotary control is also used to adjust the blower speed, air distribution briefly pressing the buttons. The LEDs in the buttons light up when and seat heating. the function is switched on. b)The symbol differs slightly on some models. Note • The grille on the control console ⇒ fig. 116 must be kept free. Please ensure that it is not covered by stickers or similar. Measuring sensors are located behind it. Controls Safety Driving tips General maintenance Self-help Technical data
