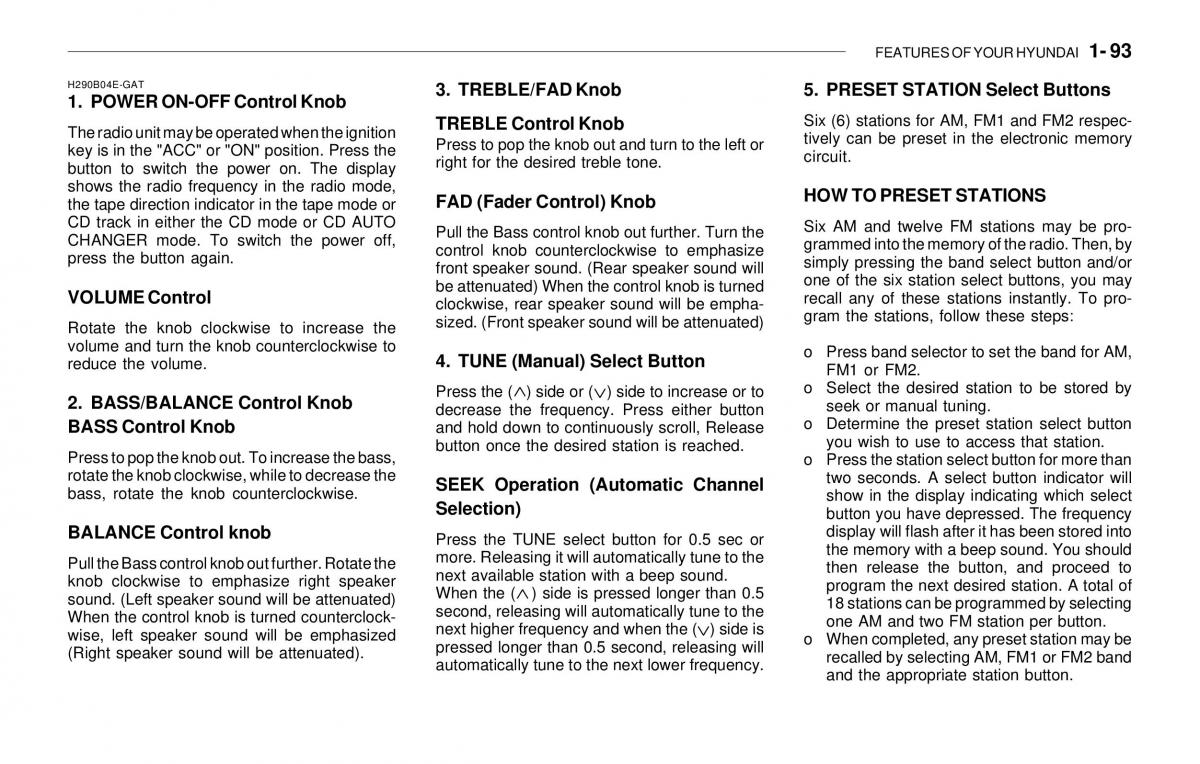

FEATURES OF YOUR HYUNDAI 1- 93 H290B04E-GAT 3. TREBLE/FAD Knob 5. PRESET STATION Select Buttons 1. POWER ON-OFF Control Knob The radio unit may be operated when the ignition TREBLE Control Knob Six (6) stations for AM, FM1 and FM2 respec- key is in the "ACC" or "ON" position. Press the Press to pop the knob out and turn to the left ortively can be preset in the electronic memory right for the desired treble tone. circuit. button to switch the power on. The display shows the radio frequency in the radio mode, HOW TO PRESET STATIONS the tape direction indicator in the tape mode or FAD (Fader Control) Knob CD track in either the CD mode or CD AUTO Six AM and twelve FM stations may be pro- Pull the Bass control knob out further. Turn the CHANGER mode. To switch the power off, grammed into the memory of the radio. Then, by press the button again. control knob counterclockwise to emphasize simply pressing the band select button and/or front speaker sound. (Rear speaker sound will be attenuated) When the control knob is turned one of the six station select buttons, you may VOLUME Control recall any of these stations instantly. To pro- clockwise, rear speaker sound will be empha- sized. (Front speaker sound will be attenuated) gram the stations, follow these steps: Rotate the knob clockwise to increase the volume and turn the knob counterclockwise to o Press band selector to set the band for AM, reduce the volume. 4. TUNE (Manual) Select Button FM1 or FM2. 2. BASS/BALANCE Control Knob Press the ( ) side or ( ) side to increase or too Select the desired station to be stored by seek or manual tuning. decrease the frequency. Press either button o Determine the preset station select button BASS Control Knob and hold down to continuously scroll, Release you wish to use to access that station. Press to pop the knob out. To increase the bass, button once the desired station is reached. rotate the knob clockwise, while to decrease the o Press the station select button for more than two seconds. A select button indicator will SEEK Operation (Automatic Channel bass, rotate the knob counterclockwise. show in the display indicating which select Selection) button you have depressed. The frequency BALANCE Control knob display will flash after it has been stored into Press the TUNE select button for 0.5 sec or Pull the Bass control knob out further. Rotate themore. Releasing it will automatically tune to the the memory with a beep sound. You should next available station with a beep sound. then release the button, and proceed to knob clockwise to emphasize right speaker program the next desired station. A total of sound. (Left speaker sound will be attenuated) When the ( ) side is pressed longer than 0.5 second, releasing will automatically tune to the 18 stations can be programmed by selecting When the control knob is turned counterclock- one AM and two FM station per button. next higher frequency and when the ( ) side is wise, left speaker sound will be emphasized o When completed, any preset station may be pressed longer than 0.5 second, releasing will (Right speaker sound will be attenuated). recalled by selecting AM, FM1 or FM2 band automatically tune to the next lower frequency. and the appropriate station button.
