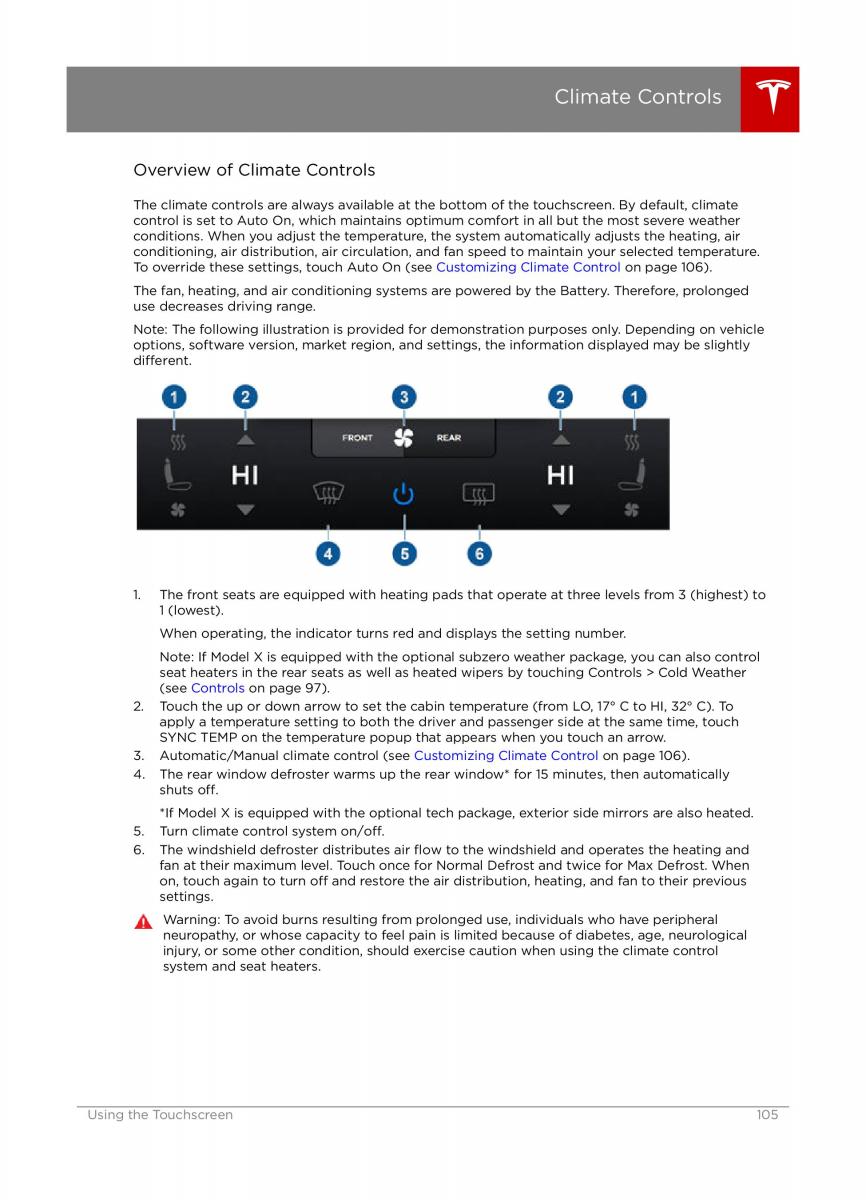

Climate Controls Overview of Climate Controls The climate controls are always available at the bottom of the touchscreen. By default, climate control is set to Auto On, which maintains optimum comfort in all but the most severe weather conditions. When you adjust the temperature, the system automatically adjusts the heating, air conditioning, air distribution, air circulation, and fan speed to maintain your selected temperature. To override these settings, touch Auto On (see Customizing Climate Control on page 106). The fan, heating, and air conditioning systems are powered by the Battery. Therefore, prolonged use decreases driving range. Note: The following illustration is provided for demonstration purposes only. Depending on vehicle options, software version, market region, and settings, the information displayed may be slightly diferent. 1. The front seats are equipped with heating pads that operate at three levels from 3 (highest) to 1 (lowest). When operating, the indicator turns red and displays the setting number. Note: If Model X is equipped with the optional subzero weather package, you can also control seat heaters in the rear seats as well as heated wipers by touching Controls > Cold Weather (see Controls on page 97). 2. Touch the up or down arrow to set the cabin temperature (from LO, 17° C to HI, 32° C). To apply a temperature setting to both the driver and passenger side at the same time, touch SYNC TEMP on the temperature popup that appears when you touch an arrow. 3. Automatic/Manual climate control (see Customizing Climate Control on page 106). 4. The rear window defroster warms up the rear window* for 15 minutes, then automatically shuts of. *If Model X is equipped with the optional tech package, exterior side mirrors are also heated. 5. Turn climate control system on/of. 6. The windshield defroster distributes air low to the windshield and operates the heating and fan at their maximum level. Touch once for Normal Defrost and twice for Max Defrost. When on, touch again to turn of and restore the air distribution, heating, and fan to their previous settings. Warning: To avoid burns resulting from prolonged use, individuals who have peripheral neuropathy, or whose capacity to feel pain is limited because of diabetes, age, neurological injury, or some other condition, should exercise caution when using the climate control system and seat heaters. Using the Touchscreen 105
