owners manual Mazda Tribute

owners manual Mazda Tribute - year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 - Mazda Tribute owners manual EN

Document: pdf (2.91 MB) 272 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mazda Tribute, year of production 2000 - 2011:

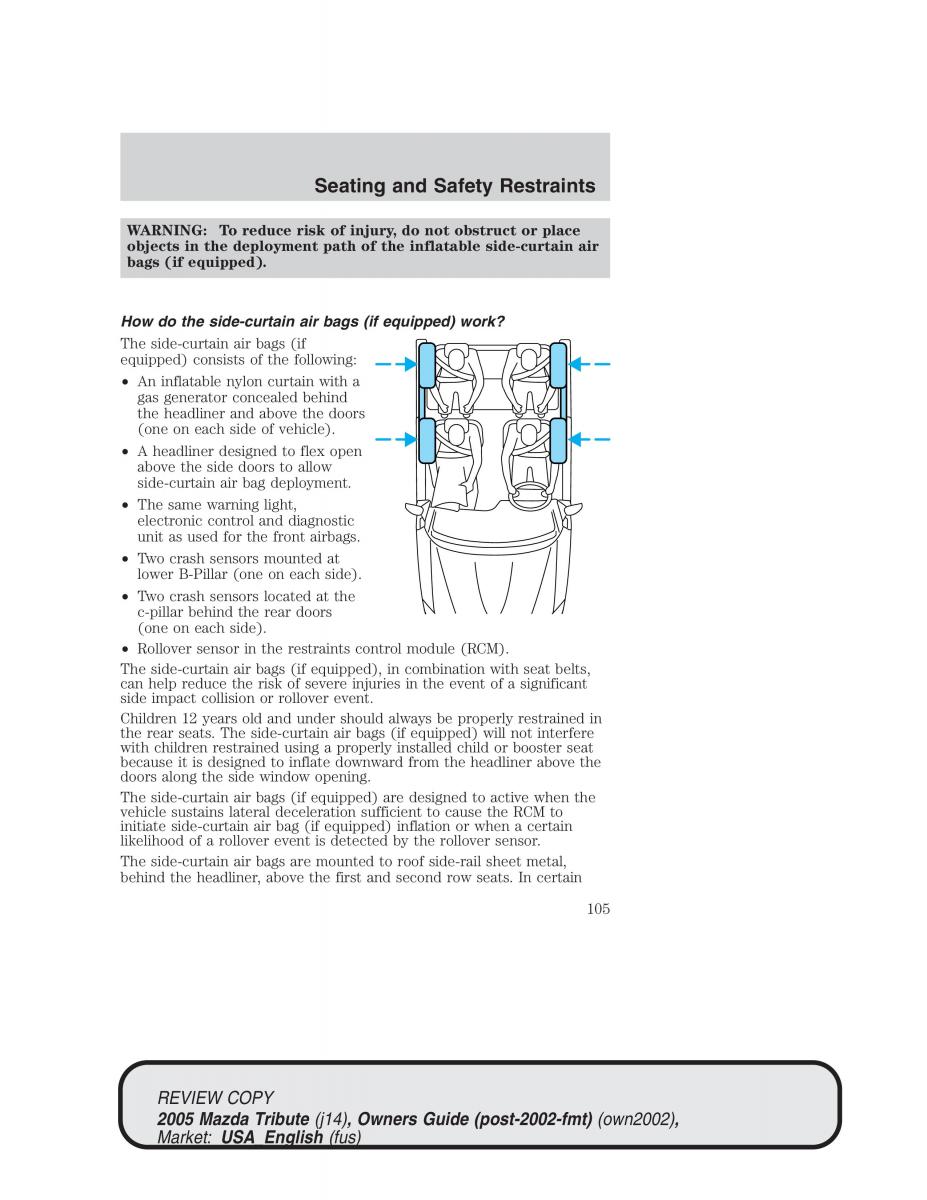

Seating and Safety Restraints WARNING: To reduce risk of injury, do not obstruct or place objects in the deployment path of the inflatable side-curtain air bags (if equipped). Howdotheside-curtain air bags (if equipped) work? The side-curtain air bags (if equipped) consists of the following: • An inflatable nylon curtain with a gas generator concealed behind the headliner and above the doors (one on each side of vehicle). • A headliner designed to flex open above the side doors to allow side-curtain air bag deployment. • The same warning light, electronic control and diagnostic unit as used for the front airbags. • Two crash sensors mounted at lower B-Pillar (one on each side). • Two crash sensors located at the c-pillar behind the rear doors (one on each side). • Rollover sensor in the restraints control module (RCM). The side-curtain air bags (if equipped), in combination with seat belts, can help reduce the risk of severe injuries in the event of a significant side impact collision or rollover event. Children 12 years old and under should always be properly restrained in the rear seats. The side-curtain air bags (if equipped) will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening. The side-curtain air bags (if equipped) are designed to active when the vehicle sustains lateral deceleration sufficient to cause the RCM to initiate side-curtain air bag (if equipped) inflation or when a certain likelihood of a rollover event is detected by the rollover sensor. The side-curtain air bags are mounted to roof side-rail sheet metal, behind the headliner, above the first and second row seats. In certain 105 REVIEW COPY 2005 Mazda Tribute (j14), Owners Guide (post-2002-fmt) (own2002), Market: USA_English (fus)
