text version of content this owner's manual page from owners manual to the vehicle Mercedes W140, year of production 1991 - 1998:

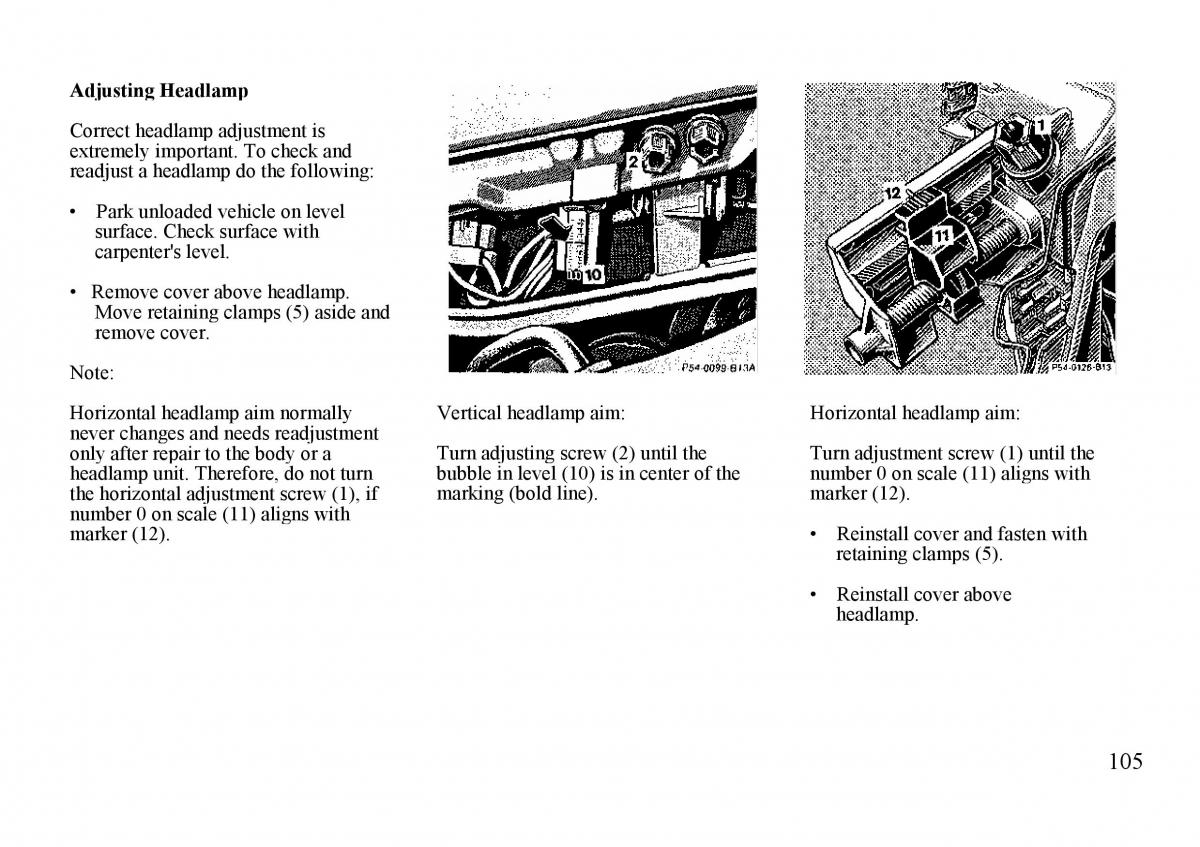

Adjusting Headlamp Correct headlamp adjustment is extremely important. To check and readjust a headlamp do the following: •Park unloaded vehicle on level surface. Check surface with carpenter's level. •Removecoveraboveheadlamp. Moveretaining clamps (5) aside and remove cover. Note: Horizontal headlamp aim normallyVertical headlamp aim:Horizontal headlamp aim: never changes and needs readjustment only after repair to the body or aTurn adjusting screw (2) until theTurn adjustment screw (1) until the headlamp unit. Therefore, do not turnbubble in level (10) is in center of thenumber 0 on scale (11) aligns with the horizontal adjustment screw (1), ifmarking (bold line).marker (12). number 0 on scale (11) aligns with marker (12). •Reinstall cover and fasten with retaining clamps (5). •Reinstall cover above headlamp. 105
