text version of content this owner's manual page from owners manual to the vehicle Peugeot 5008, year of production 2009:

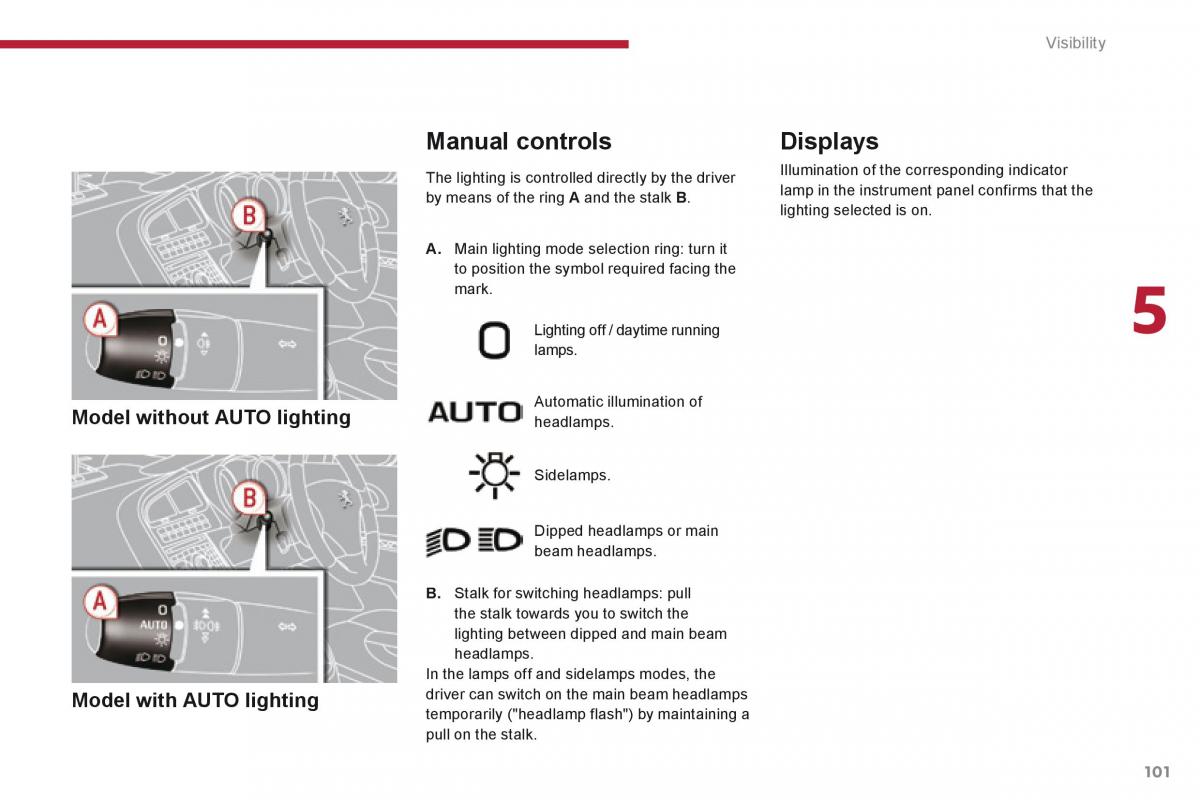

Visibility M anual controls Di splays The lighting is controlled directly by the driver Illumination of the corresponding indicator by means of the ring A and the stalk B . lamp in the instrument panel confirms that the lighting selected is on. A. Main lighting mode selection ring: turn it to position the symbol required facing the mark. Lighting off / daytime running 5 lamps. M odel without AUTO lighting Automatic illumination of headlamps. Sidelamps. Dipped headlamps or main beam headlamps. B. Stalk for switching headlamps: pull the stalk towards you to switch the lighting between dipped and main beam headlamps. In the lamps off and sidelamps modes, the M odel with AUTO lighting driver can switch on the main beam headlamps temporarily ("headlamp flash") by maintaining a pull on the stalk. 101
