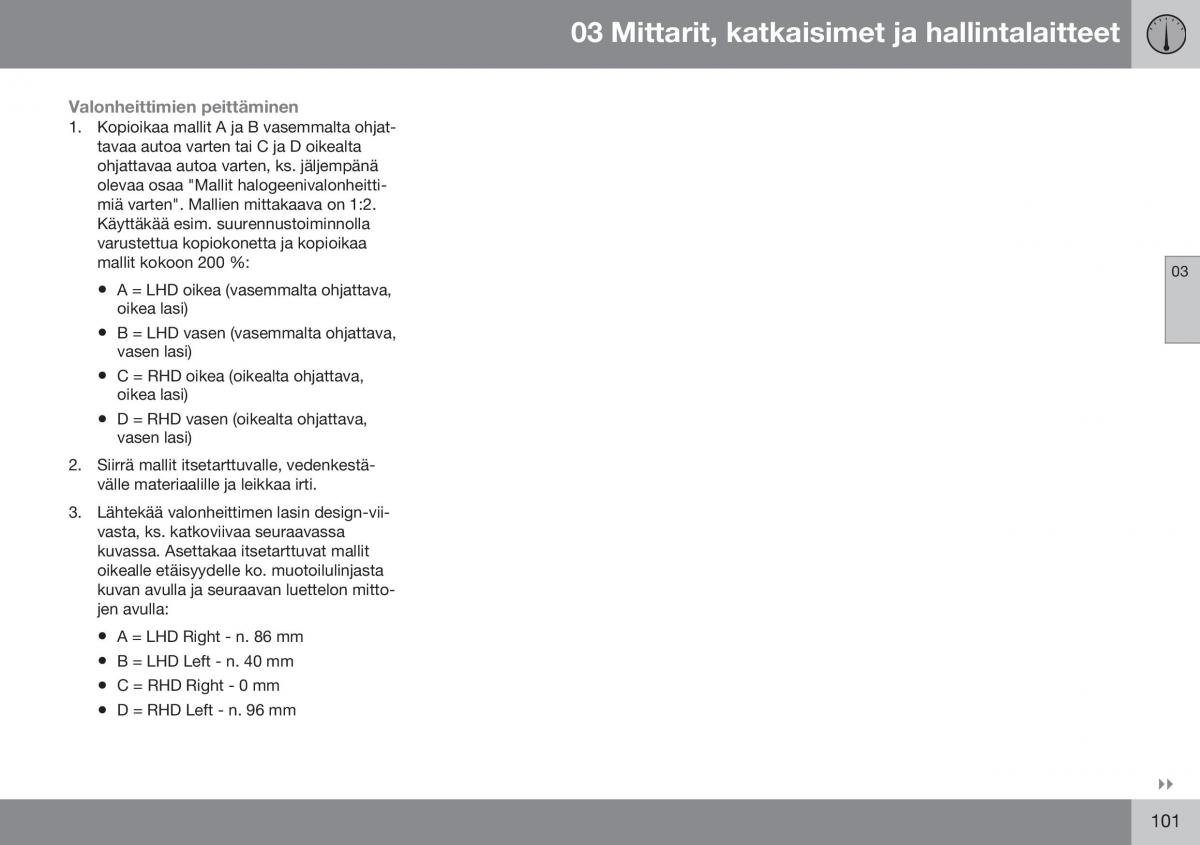

03 Mittarit, katkaisimet ja hallintalaitteet
Valonheittimien peittäminen
1.Kopioikaa mallit A ja B vasemmalta ohjat-
tavaa autoa varten tai C ja D oikealta
ohjattavaa autoa varten, ks. jäljempänä
olevaa osaa "Mallit halogeenivalonheitti-
miä varten". Mallien mittakaava on 1:2.
Käyttäkää esim. suurennustoiminnolla
varustettua kopiokonetta ja kopioikaa
mallit kokoon 200 %:
03
• A = LHD oikea (vasemmalta ohjattava,
oikea lasi)
• B = LHD vasen (vasemmalta ohjattava,
vasen lasi)
• C = RHD oikea (oikealta ohjattava,
oikea lasi)
• D = RHD vasen (oikealta ohjattava,
vasen lasi)
2.Siirrä mallit itsetarttuvalle, vedenkestä-
välle materiaalille ja leikkaa irti.
3.Lähtekää valonheittimen lasin design-vii-
vasta, ks. katkoviivaa seuraavassa
kuvassa. Asettakaa itsetarttuvat mallit
oikealle etäisyydelle ko. muotoilulinjasta
kuvan avulla ja seuraavan luettelon mitto-
jen avulla:
• A = LHD Right - n. 86 mm
• B = LHD Left - n. 40 mm
• C = RHD Right - 0 mm
• D = RHD Left - n. 96 mm
}}
101
