owners manual Ford Fiesta

all ratings: 0 average rating: 5

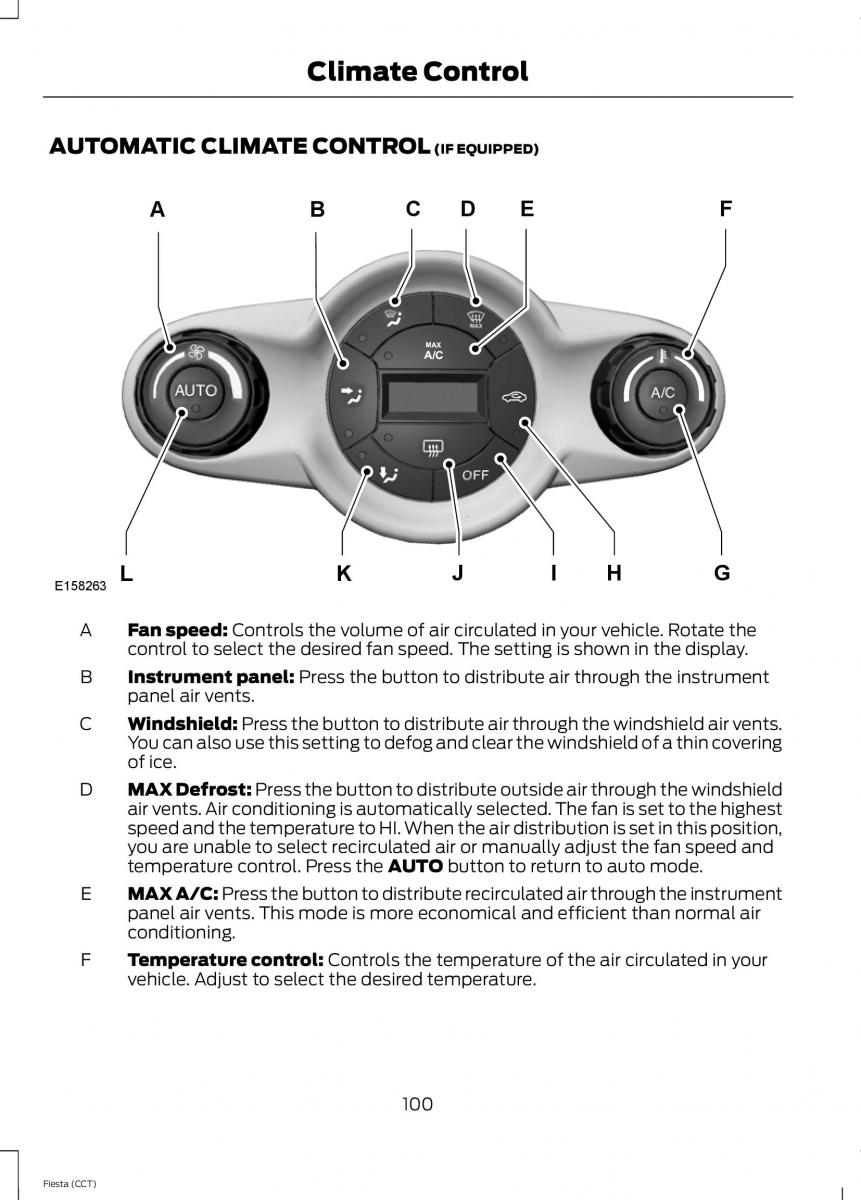

Climate Control AUTOMATIC CLIMATE CONTROL (IF EQUIPPED) A B C D E F L K J I H G E158263 A Fan speed: Controls the volume of air circulated in your vehicle. Rotate the control to select the desired fan speed. The setting is shown in the display. B Instrument panel: Press the button to distribute air through the instrument panel air vents. C Windshield: Press the button to distribute air through the windshield air vents. You can also use this setting to defog and clear the windshield of a thin covering of ice. D MAX Defrost: Press the button to distribute outside air through the windshield air vents. Air conditioning is automatically selected. The fan is set to the highest speed and the temperature to HI. When the air distribution is set in this position, you are unable to select recirculated air or manually adjust the fan speed and temperature control. Press the AUTO button to return to auto mode. E MAX A/C: Press the button to distribute recirculated air through the instrument panel air vents. This mode is more economical and efficient than normal air conditioning. F Temperature control: Controls the temperature of the air circulated in your vehicle. Adjust to select the desired temperature. 100 Fiesta (CCT)
