text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

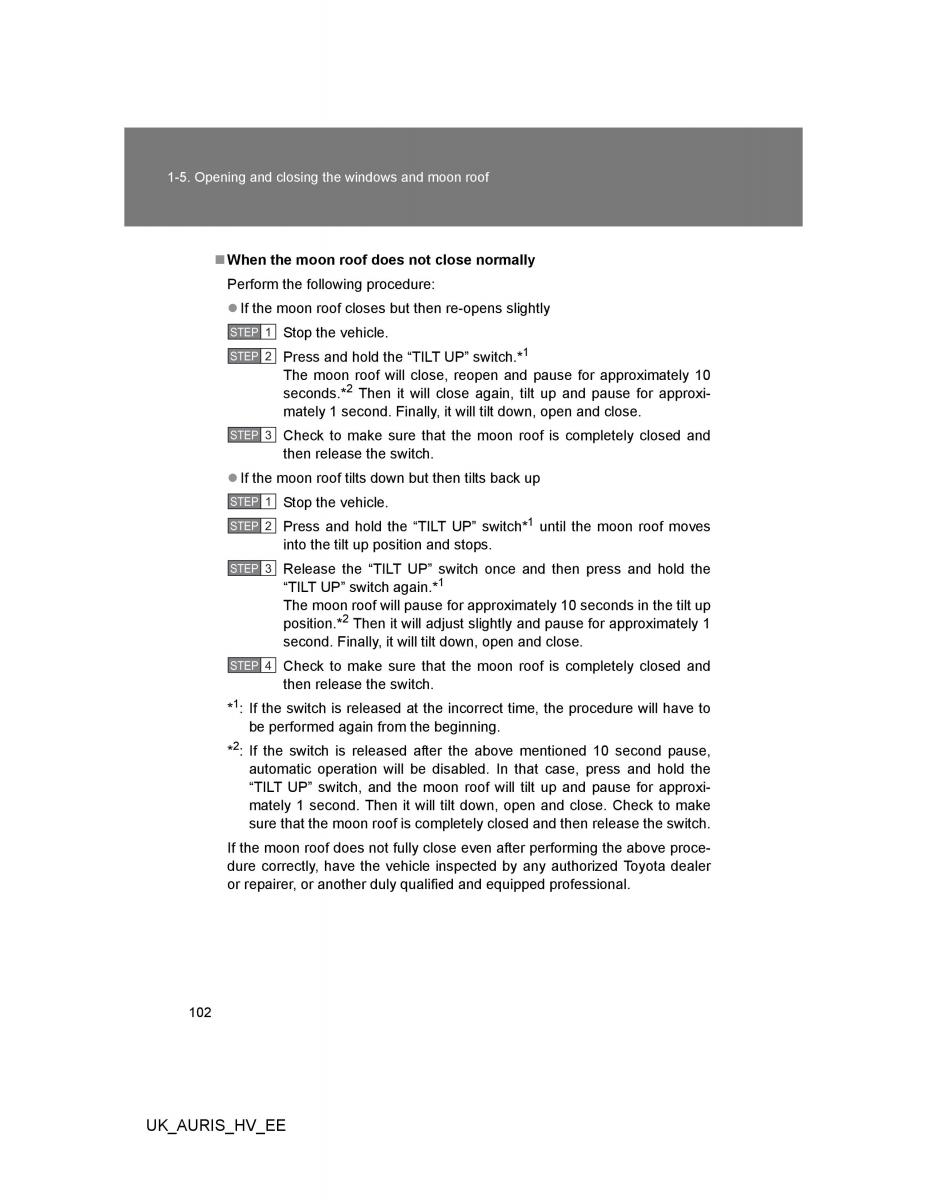

1-5. Opening and closing the windows and moon roof When the moon roof does not close normally Perform the following procedure: If the moon roof closes but then re-opens slightly STEP 1 Stop the vehicle. STEP 2 1 Press and hold the “TILT UP” switch.* The moon roof will close, reopen and pause for approximately 10 2 seconds.* Then it will close again, tilt up and pause for approxi- mately 1 second. Finally, it will tilt down, open and close. STEP 3 Check to make sure that the moon roof is completely closed and then release the switch. If the moon roof tilts down but then tilts back up STEP 1 Stop the vehicle. STEP 2 1 Press and hold the “TILT UP” switch* until the moon roof moves into the tilt up position and stops. STEP 3 Release the “TILT UP” switch once and then press and hold the “TILT UP” switch again.*1 The moon roof will pause for approximately 10 seconds in the tilt up 2 position.* Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt down, open and close. STEP 4 Check to make sure that the moon roof is completely closed and then release the switch. 1 * : If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning. 2 * : If the switch is released after the above mentioned 10 second pause, automatic operation will be disabled. In that case, press and hold the “TILT UP” switch, and the moon roof will tilt up and pause for approxi- mately 1 second. Then it will tilt down, open and close. Check to make sure that the moon roof is completely closed and then release the switch. If the moon roof does not fully close even after performing the above proce- dure correctly, have the vehicle inspected by any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. 102 UK_AURIS_HV_EE
