text version of content this owner's manual page from owners manual to the vehicle Subaru Forester, year of production 1997 - 2002:

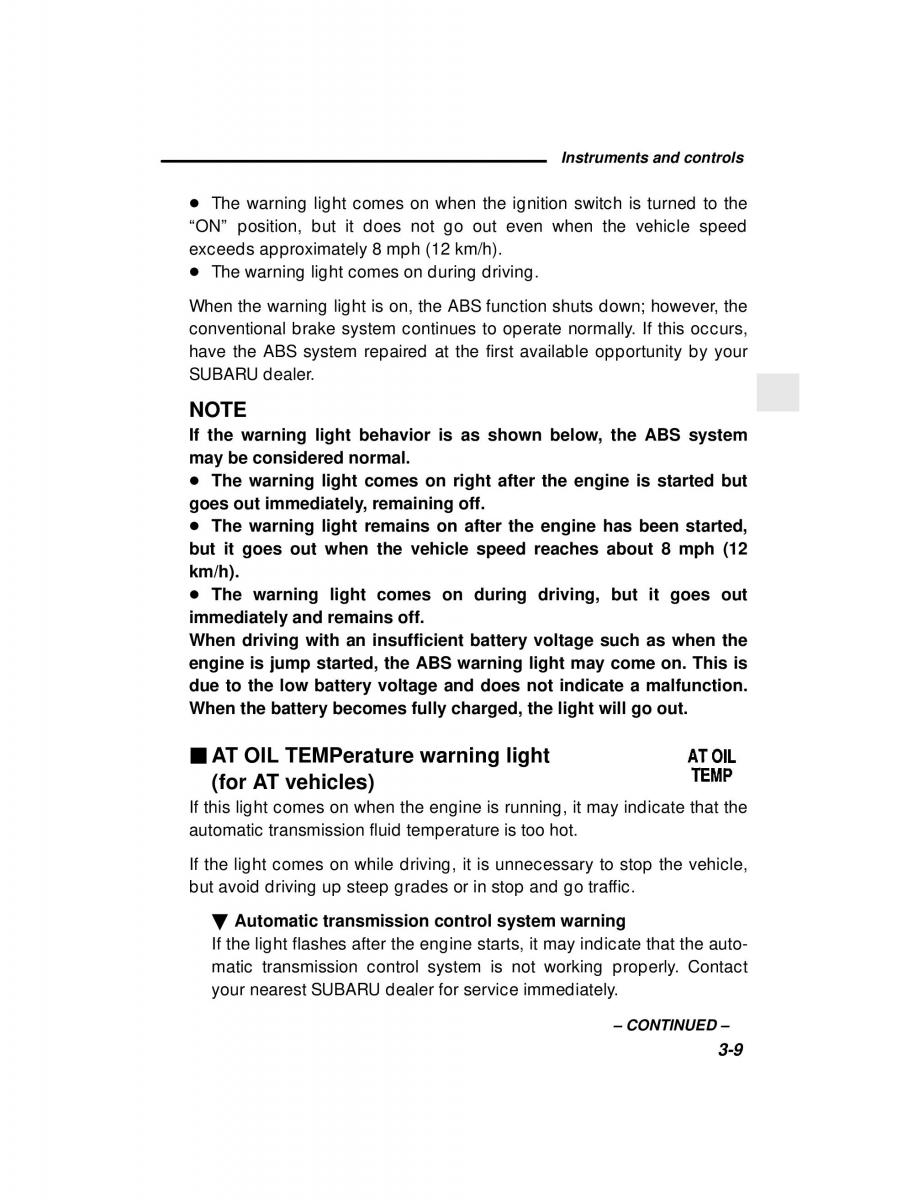

Instruments and controls
The warning light comes on when the ignition switch is turned to the
“ON” position, but it does not go out even when the vehicle speed
exceeds approximately 8 mph (12 km/h).
The warning light comes on during driving.
When the warning light is on, the ABS function shuts down; however, the
conventional brake system continues to operate normally. If this occurs,
have the ABS system repaired at the first available opportunity by your
SUBARU dealer.
NOTE
If the warning light behavior is as shown below, the ABS system
may be considered normal.
The warning light comes on right after the engine is started but
goes out immediately, remaining off.
The warning light remains on after the engine has been started,
but it goes out when the vehicle speed reaches about 8 mph (12
km/h).
The warning light comes on during driving, but it goes out
immediately and remains off.
When driving with an insufficient battery voltage such as when the
engine is jump started, the ABS warning light may come on. This is
due to the low battery voltage and does not indicate a malfunction.
When the battery becomes fully charged, the light will go out.
AT OIL TEMPerature warning light
(for AT vehicles)
If this light comes on when the engine is running, it may indicate that the
automatic transmission fluid temperature is too hot.
If the light comes on while driving, it is unnecessary to stop the vehicle,
but avoid driving up steep grades or in stop and go traffic.
Automatic transmission control system warning
If the light flashes after the engine starts, it may indicate that the auto-
matic transmission control system is not working properly. Contact
your nearest SUBARU dealer for service immediately.
– CONTINUED –
3-9
